Product Summary

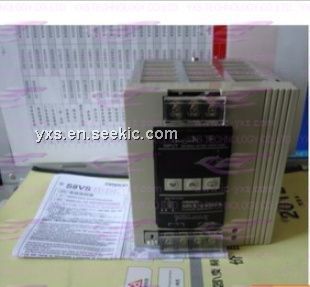

The S8VS-24024A is a kind of Switch Mode Power Supply.
Parametrics
S8VS-24024A specifications: (1)Storage temperature: -25 to 65°C; (2)Operating ambient humidity: 25% to 85% (Storage humidity: 25% to 90%); (3)Dielectric strength: 3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA); 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA); 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA); (4)Insulation resistance: 100 MΩ min. (between all outputs and all inputs/ PE terminals) at 500 VDC; (5)Vibration resistance: 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions; (6)Shock resistance: 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions.
Features
S8VS-24024A features: (1)New 90-W models with indication monitor that conform to UL Class 2 Output standards; (2)New models with screwless terminal blocks and indication monitor; (3)Status displayed on 3-digit, 7-segment display; (4)Safety standards: UL508/60950-1, CSA C22.2 No. 14/60950-1; (5)(15-W and 30-W models), CSA C22.2 No. 107.1/60950-1 (60-W to 240-W and 480-W models), EN 50178 (= VDE0160); (6)Input conditions: DC input is also possible from 80 to 370 VDC (BE models only, not compliant with EC Directives and other safety standards).

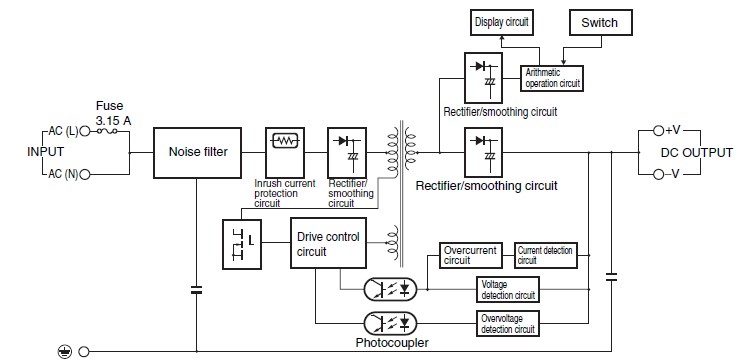

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 S8VS-24024A |
Omron Industrial |
DIN Rail Power Supplies 24V 10A LIFE DSPLY |
Data Sheet |
|
|
||||||||||||
 |
S8VS-24024A-F |
Omron Industrial |
DIN Rail Power Supplies 120W Sink Screwless Run Time Monitor |
Data Sheet |
|
|
||||||||||||
|
S8VS-24024AP-F |
Omron Industrial |
DIN Rail Power Supplies 180W Sink Screwless Forecast Monitor |
Data Sheet |
|
|
||||||||||||
|
S8VS-24024AP |
Omron Industrial |
DIN Rail Power Supplies Power Supply |
Data Sheet |
|
|
||||||||||||
