Product Summary

The HL5050 is a general-purpose limit switch.

Parametrics

HL5050 absolute maximum ratings: (1)Operating speed: 5 mm/s to 0.5 m/s; (2)Operating frequency Mechanical: 120 operations/min and Electrical: 30 operations/min; (3)Insulation resistance 100 MΩ min. (at 500 VDC); (4)Contact resistance 25 mΩ max. (initial value); (5)Rated frequency 50/60 Hz; (6)Vibration resistance Malfunction: 10 to 55 Hz, 1.5-mm double amplitude; (7)Ambient temperature Operating: –5°C to 65°C (with no icing); (8)Ambient humidity Operating: 95% max..

Features

HL5050 features: (1)Highly rigid construction (head and cover snugly fit in box); (2)Dustproof and drip-proof construction; (3)Smooth operation with greater OT; (4)Easy-to-wire conduit opening design; (5)Models with grounding terminals conform to the CE marking; (6)Approved by CCC (Chinese standard).

Diagrams

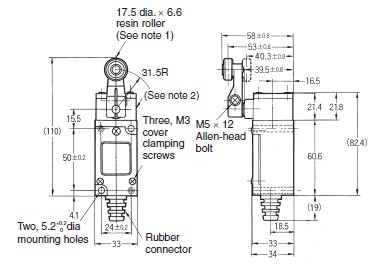

HL5050 dimension figure
