Product Summary
The S82K-05024 is a switch mode power supplier.
Parametrics
S82K-05024 absolute maximum ratings: (1)Ambient temperature: Storage: -25°C to 65°C (no condensation or icing); (2)Ambient humidity Operating: 25% to 85%; (3)Insulation resistance: 100 MΩ min. at 500 VDC (between all outputs and all inputs/GR terminal); (4)Output indicator :Yes (green); (5)Frequency: 50/60 Hz (47 to 63 Hz); (6)Voltage adjustment range: ±10% (V.ADJ); (7)Ripple: 2% (p-p) max..
Features
S82K-05024 features: (1)Wide power range: 3 to 240 W; (2)?Wide AC input voltage range: 100 to 240 V on one body.; (3)?Undervoltage alarm function (indicator) incorporated as standard.; (4)(With the 240-W models, applicable only to the T models.); (5)90 and 100-W models standardized with the alarm output.; (6)Output/input terminal parts separated on body upper/bottom; (7)side, respectively, for safe and smart wiring.; (8)Multiple pairs of output terminals;; (9)Three pairs for 90, 100, and 240-W models; (10)Two pairs for 30 and 50-W models; (11)Finger-safe terminal block with cover according to VDE0106/P100; (12)Conforms to the stringent EN50081-1 standard for universal use in any environment subject to EMI conditions (except for 240-W models) in addition to EN50082-2 conformity for use at any EMS environment; (13)DC output ports comply to EN55022 class A, thus ensuring use in any environment subject to EMI with recommended external filters (3- to 100-W models); (14)Meets EN61000-3-2 (limits for harmonic current emissions) with PFC on 90, 100, and 240-W models; (15)Parallel running operation (100 and 240-W models).; (16)Class 2 approved (except for 240-W models and 7.5-W dual output models); (17)Approvals of various international safety standards for industrial control equipment and industrial computing systems (ITE/TE), in addition to other important approvals; (18)Six-language instruction manual provided.

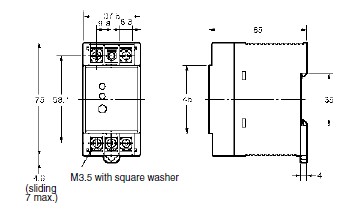

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S82K-05024 |
Omron Industrial |
DIN Rail Power Supplies 50W 24VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
S82K |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S82K-00305 |
Omron Industrial |
DIN Rail Power Supplies 3W 5VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
|
S82K00305K |
Omron Industrial |
DIN Rail Power Supplies |
Data Sheet |
Negotiable |
|
||||
|
S82K-00312 |
Omron Industrial |
DIN Rail Power Supplies 3W 12VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
|
S82K-00315 |
Omron Industrial |
DIN Rail Power Supplies 15VDC 0.2Aoutp.100-2 40VAC INPT |
Data Sheet |
Negotiable |
|
||||
|
S82K-00324 |
Omron Industrial |
DIN Rail Power Supplies 3W 24VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
