S8VS-06024

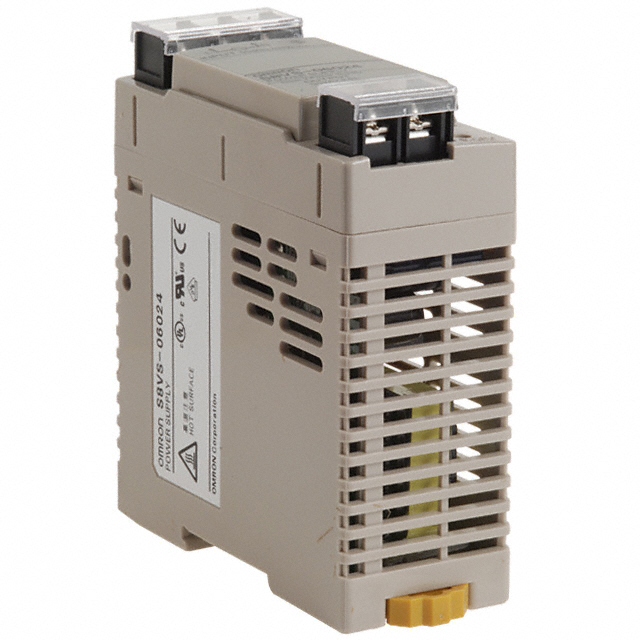

S8VS-06024, Switch Mode Power Supply, 60 W, 24 V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $71.00~106.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	106.00 / Piece
10 ~ 20 :	89.00 / Piece
20 ~ 30 :	71.00 / Piece

PartNumber:: S8VS-06024

Brand:: Omron Electronics Inc - Omron | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-20

From Other Seller

Part Number:S8VS-06024
US $71.00 - 106.00
Quantity:

piece

Product Summary

The S8VS-06024 is a kind of Switch Mode Power Supply.

Parametrics

S8VS-06024 specifications: (1)Storage temperature: -25 to 65°C; (2)Operating ambient humidity: 25% to 85% (Storage humidity: 25% to 90%); (3)Dielectric strength: 3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA); 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA); 1.0 kVAC for 1 min. (between all outputs and PE terminals; detection current: 20 mA); (4)Insulation resistance: 100 MΩ min. (between all outputs and all inputs/ PE terminals) at 500 VDC; (5)Vibration resistance: 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions; (6)Shock resistance: 150 m/s2, 3 times each in ±X, ±Y, and ±Z directions.

Features

S8VS-06024 features: (1)New 90-W models with indication monitor that conform to UL Class 2 Output standards; (2)New models with screwless terminal blocks and indication monitor; (3)Status displayed on 3-digit, 7-segment display; (4)Safety standards: UL508/60950-1, CSA C22.2 No. 14/60950-1; (5)(15-W and 30-W models), CSA C22.2 No. 107.1/60950-1 (60-W to 240-W and 480-W models), EN 50178 (= VDE0160); (6)Input conditions: DC input is also possible from 80 to 370 VDC (BE models only, not compliant with EC Directives and other safety standards).
