Product Summary

The EE-SX870 is a Photomicrosensor (Through-beam).



Parametrics

EE-SX870 absolute maximum ratings: (1)emitter forward current if: 50 ma (see note 1); (2)pulse forward current ifp: 1 a (see note 2); (3)reverse voltage vr: 4 v; (4)receiver collector–emitter voltage vceo: 30 v; (5)collector current ic: 20 ma; (6)collector dissipation pc: 100 mw (see note 1); (7)ambient temperature operating topr: –25°c to 85°c; (8)storage tstg: –30°c to 100°c; (9)soldering temperature tsol: 260°c.

Features

EE-SX870 features: (1)Compact model with a 2-mm-wide slot.; (2)PCB mounting type.; (3)High resolution with a 0.5-mm-wide slit.

Diagrams

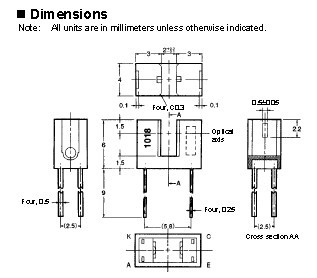

EE-SX870 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EE-SX870
EE-SX870
Omron Industrial
Optical Switches, Transmissive, with Phototransistor Output SLOT LGHT-ON NPN
Data Sheet
0-1: $19.01
1-2: $18.43
2-5: $17.88
5-10: $17.35
