Product Summary

The S82K-01512 is a switch mode power supplier with a wide power range from 3 to 240 W.

Parametrics

S82K-01512 absolute maximum ratings: (1)Efficiency (typical): 60% to 80% (Varies depending on specifications.); (2)Input Frequency: 50/60 Hz (47 to 63 Hz); (3)Noise filter: Yes; (4)Voltage adjustment range: ±10% (V.ADJ); (5)Ripple: 2% (p-p) max.; (6)Temperature variation: 0.05%/°C max.; (7)Startup time: 200 ms max.; (8)Hold time: 20 ms min.

Features

S82K-01512 features: (1)Wide power range: 3 to 240 W; (2)Wide AC input voltage range: 100 to 240 V on one body; (3)Undervoltage alarm function (indicator) incorporated as standard (With the 240-W models, applicable only to the -T models.) 90 and 100-W models standardized with the alarm output; (4)Output/input terminal parts separated on body upper/bottom side, respectively, for safe and smart wiring; (5)Multiple pairs of output terminals; Three pairs for 90, 100, and 240-W models, Two pairs for 30 and 50-W models; (6)Finger-safe terminal block with cover according to VDE0106/; (7)P100; (8)Class 2 approved (except for 240-W models and 7.5-W dual output models); (9)Parallel running operation (100 and 240-W models); (10)Six-language instruction manual provided.

Diagrams

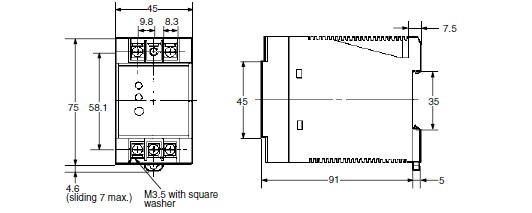

S82K-01512 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S82K-01512
S82K-01512

Omron Industrial

DIN Rail Power Supplies 15W 12VDC DIN MT

Data Sheet

Negotiable
S82K-01512(K)
S82K-01512(K)

Omron Industrial

DIN Rail Power Supplies

Data Sheet

Negotiable
