Product Summary

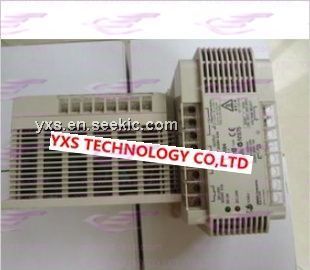

The S82K-10024 is a switch mode power supply.
Parametrics
S82K-10024 absolute maximum ratings: (1)Power ratings: 90 W; (2)Output voltage: 24 V; (3)Output current: 3.75 A.
Features
S82K-10024 features: (1)Wide power range: 3 to 240 W; (2)Wide AC input voltage range: 100 to 240 V on one body; (3)Undervoltage alarm function (indicator)incorporated as standard. (With the 240-W models, applicable only to the “-T” models.)90 and 100-W models standardized with the alarm output; (4)Output/input terminal parts separated on body upper/bottom side, respectively, for safe and smart wiring; (5)Multiple pairs of output terminals; Three pairs for 90, 100, and 240-W models; Two pairs for 30 and 50-W models; (6)Finger-safe terminal block with cover according to VDE0106/ P100; (7)Conforms to the stringent EN50081-1 standard for universal use in any environment subject to EMI conditions (except for 240-W models)in addition to EN50082-2 conformity for use at any EMS environment; (8)DC output ports comply to EN55022 class A, thus ensuring use in any environment subject to EMI with recommended external filters (3- to 100-W models); (9)Meets EN61000-3-2 (limits for harmonic current emissions)with PFC on 90, 100, and 240-W models.

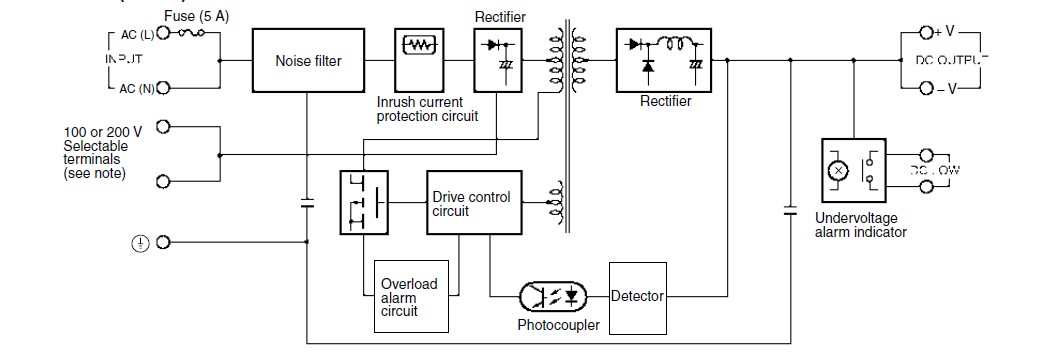

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S82K-10024 |
Omron Industrial |
DIN Rail Power Supplies 100W 24VDC DIN MT |
Data Sheet |
Negotiable |
|
||||
 |
S82K-10024(K) |
Omron Industrial |
DIN Rail Power Supplies |
Data Sheet |
Negotiable |
|
||||
