Product Summary

The S82K-00305 is a Switch Mode Power Supply of 3W.

Parametrics

S82K-00305 absolute maximum ratings: (1)Power Ratings: 3 W; (2)Output Voltage: +5 VDC; (3)Output current: 0.6 A; (4)Storage temperature: -25 to 65℃ (with no icing or condensation); (5)Operating ambient humidity: 25% to 85% (Storage humidity: 25% to 90%); (6)Insulation resistance: 100 MΩ min. (between all outputs and all inputs, PE terminals) at 500 VDC; (7)Vibration resistance: 10 to 55 Hz, 0.375-mm single amplitude for 2 h each in X, Y, and Z directions; (8)Shock resistance: 300 m/s2, 3 times each in ±X, ±Y, ±Z directions.

Features

S82K-00305 features: (1)EMI: EN 61204-3 class B; (2)Input: 85 to 264 VAC; (3)Safety standards: UL 60950-1/508, cUL: CSA C22.2 No. 14 (Class 2: Per No. 223), cUR: CSA No. 60950-1, EN 60950-1 (= VDE 0805, Teil 1), EN50178 (= VDE 0160); (4)Undervoltage alarm indication available for standard models; (5)RoHS-compliant.

Diagrams

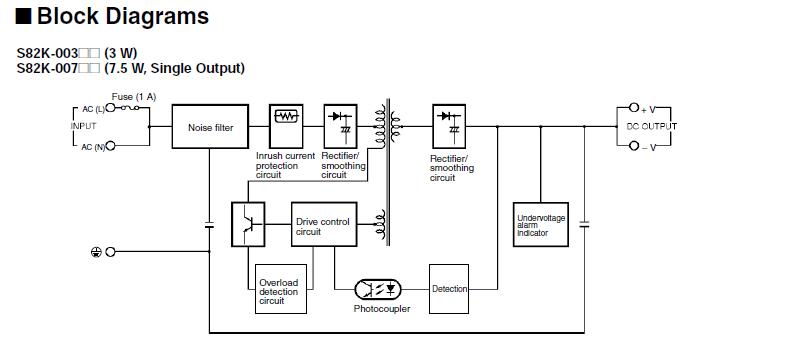

S82K-00305 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S82K-00305
S82K-00305

Omron Industrial

DIN Rail Power Supplies 3W 5VDC DIN MT

Data Sheet

Negotiable
