Product Summary

The MS2-H75 is a 3.2A Compact Switching Power Supply, which is designed to allow standard DIN rail mounting. There is no need to purchase any additional specialized brackets.

Parametrics

MS2-H75 absolute maximum ratings: (1)Input conditions Input voltage: 85 to 264 VAC, 110 to 370 VDC; (2)Input conditions Frequency: 47 to 63 Hz, DC; (3)Inputconditions Input current (100/200 VAC): 2.1/1.3A or less; (4)Inputconditions Efficiency (100/200 VAC): 82, 85% typ. (at 100% load); (5)Inputconditions Leakage current (100/200 VAC): 0.4, 0.75 mA or less (at 100% load); (6)Inputconditions Rush current (100/200 VAC): 25, 50 A or less (at 100% load with a +25℃ cold start); (7)Rated voltage: 24V; (8)Variable voltage range: ±5% (with V.ADJ); (9)Rated current: 4.5A; (10)Ripple/noise voltage: 180mVp-p or less; (11)Input fluctuation: 0.4% or less; (12)Load fluctuation: 1.5% or less; (13)Temperature fluctuation: 0.02%/℃ or less; (14)Operating ambient temperature: -10 to +55℃ (no freezing); (15)Operating ambient humidity: 25 to 85%RH (no condensation); (16)Storage ambient temperature: -20 to +70℃ (no freezing).

Features

MS2-H75 features: (1)Small footprint saves valuable cabinet space ; (2)Digital display provides instant power consumption feedback ; (3)DIN rail mountable for easy installation ; (4)The new MS2 Series saves time and money.

Diagrams

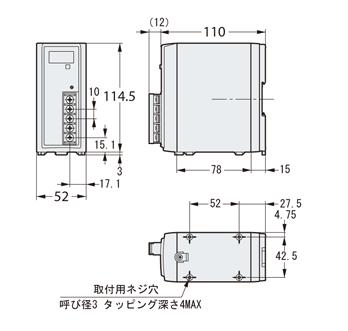

MS2-H75 package dimensions
