Product Summary

The EE-SX772 is a Thin, Compact Photomicrosensor with Attached Cable.

Parametrics

EE-SX772 absolute maximum ratings: (1)Supply voltage: 5 to 24 VDC ± 10%, ripple (p-p) 10% max; (2)Current consumptionp: NPN models 35 mA max., PNP models 30 mA max.; (3)Slot width: 5mm; (4)Standard target object Opaque: 2 x 0.8 mm min; (5)Differential travel: 0.025 mm; (6)Response frequency: 1kHz; (7)Ambient temperature: Operating -25℃ to 55℃, Storage -30℃ to 80℃; (8)Ambient h idithumidity: Operating 5% to 85%, Storage 5% to 95%.

Features

EE-SX772 features: (1)Next generation design available with NPN or PNP output; (2)Allows standard M3-screw mounting; (3)Twenty-four models available in standard, L-shaped, and T-shaped; (4)UL, EMC and CE approvals; (5)Each model equipped with a flexible cable that conforms to machine contours; (6)Compact size allows high-density mounting; (7)Indicators are visible from both sides; (8)Readily-visible, molded workpiece insertion mark allows fine-tuning of sensing position.

Diagrams

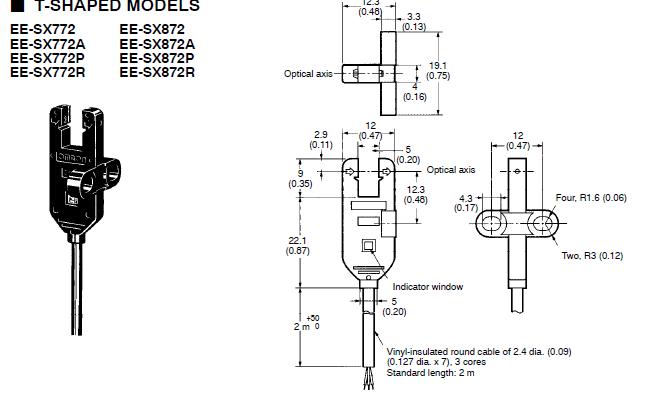

EE-SX772 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EE-SX772
EE-SX772

Omron Industrial

Optical Switches, Transmissive, with Phototransistor Output SLOT DARK-ON NPN

Data Sheet

0-1: $18.99
1-2: $18.00
2-5: $17.33
5-10: $16.42
EE-SX772A
EE-SX772A

Omron Industrial

Optical Switches, Transmissive, with Phototransistor Output SLOT DARK-ON NPN

Data Sheet

0-1: $26.15
1-25: $24.08
25-50: $21.98
50-100: $19.89
EE-SX772R
EE-SX772R

Omron Industrial

Optical Switches, Transmissive, with Phototransistor Output SLOT DARK-ON PNP

Data Sheet

0-1: $26.15
1-25: $24.08
25-50: $21.98
50-100: $19.89
EE-SX772P
EE-SX772P

Omron Industrial

Optical Switches, Transmissive, with Phototransistor Output SLOT DARK-ON PNP

Data Sheet

0-1: $26.15
1-25: $24.08
25-50: $21.98
50-100: $19.89
EE-SX772-ECON 0.3M
EE-SX772-ECON 0.3M


TC SLOT PMS NPN D-ON ECON

Data Sheet

0-1: $53.33
