Product Summary
The E2E-X18ME1-Z is a Standard Proximity Sensor.
Parametrics
E2E-X18ME1-Z absolute maximum ratings: (1)sensing distance: 2 mm ±10%; (2)set distance *1: 0 to 1.6 mm; (3)response frequency *2: 1.5 khz; (4)leakage current: 0.8 ma max.; (5)load current: 3 to 100 ma; (6)insulation resistance: 50 mω min; (7)dielectric strength: 1000 vac, 50/60 hz for 1 minute between current carry parts and case; (8).
Features
E2E-X18ME1-Z features: (1)Standard Sensors for detecting ferrous metals.; (2)Wide array of variations. Ideal for a variety of applications.; (3)Models with different frequencies are also available to prevent mutual interference.; (4) Superior environment resistance with standard cable made of oilresistant PVC and sensing surface made of material that resists cutting oil.; (5) Useful to help prevent disconnection.; (6)Cable protector provided as a standard feature.

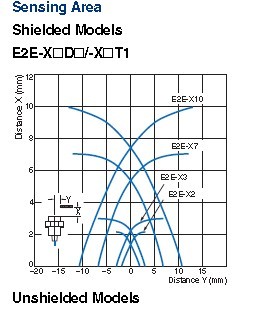

Diagrams
