E3Z-T61

E3Z-T61, amplifier, 15 m, 35 mA, 50 g, CPGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $23.00~35.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 20 :	35.00 / Piece
20 ~ 30 :	29.00 / Piece
30 ~ 40 :	23.00 / Piece

PartNumber:: E3Z-T61

Brand:: Omron Electronics Inc - Omron | D/C:

Availability:: Supply Ability: 1000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-15

From Other Seller

Part Number:E3Z-T61
US $23.00 - 35.00

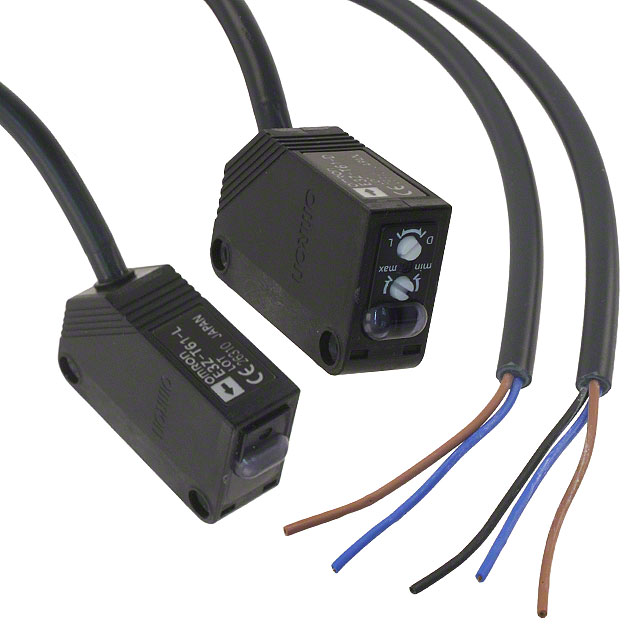

E3Z-T61-L

US $5.00 - 7.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

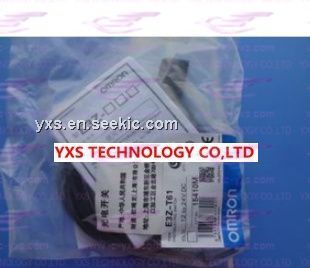

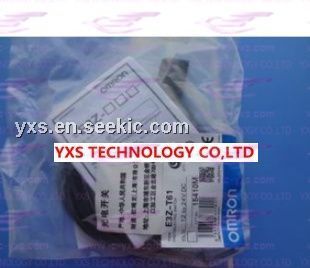

The E3Z-T61 is a compact photoelectric sensor.

Parametrics

E3Z-T61 absolute maximum ratings: (1)Sensing distance: 15 m; (2)Standard sensing object: Opaque: 12-mm dia. min; (3)Directional angle: Both emitter and receiver: 3 to 15℃; (4)Light source (wavelength): Infrared LED (870 nm); (5)Current consumption: 35 mA max. (Emitter: 15 mA max., Receiver: 20 mA max.); (6)Protection circuits: Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection; (7)Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection; (8)Response time: Operate or reset: 1 ms max.; (9)Degree of protection: IP67 (IEC), Oil resistant models: IP67 (IEC)(in-house standards: oilproof), excluding cables and connectors; (10)Connection method: Pre-wired cable (standard length: 2 m), M8 Pre-wired Connector; (11)Weight (packed state), Pre-wired cable (2 m): Approx. 120 g; Approx. 65 g; Connector (M8, 4 pins): Approx. 50 g; Approx. 30 g.

Features

E3Z-T61 features: (1)Long sensing distance of 30 m for through-beam models, 4 m for retro-reflective models, and 1 m for diffuse-reflective models; (2)Mechanical axis and optical axis offset of less than ±2.5℃ simplifies optical axis adjustment; (3)High stability with unique algorithm that prevents interference of external light.
