Product Summary

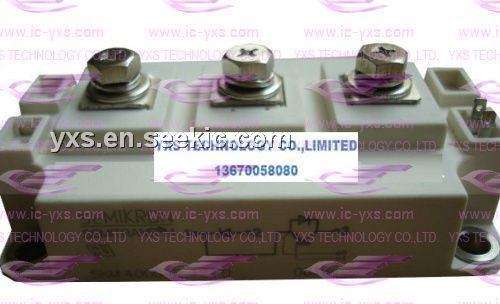

The SKM400GAL124D is a Low Loss IGBT Module.

Parametrics

SKM400GAL124D absolute maximum ratings: (1)VCES: 1200V; (2)IC, TC=25(80)℃: 570(400)A; (3)ICRM, tp=1ms: 600A; (4)VGES: ±20V; (5)Tvj, Tstg, TOPERATION≤Tstg: -40 to +150(125)℃; (6)Visol, AC, 1MIN: 2500V.

Features

SKM400GAL124D features: (1)MOS input (voltage controlled); (2)N channel, homogeneous Si-structure (NPT-Non punch-through IGBT); (3)Low inductance case; (4)Very low tail current with low temperature dependence; (5)High short circuit capability, self limiting to 6×ICNOM; (6)Latch-up free; (7)Fast & soft inverse CAL diodes; (8)Isolated copper baseplate using DCB direct copper bonding technology without hard mould; (9)Large clearance and creepage distance.

Diagrams

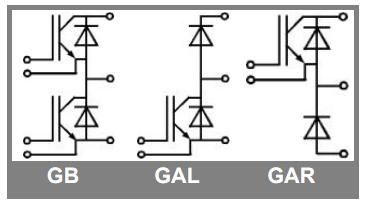

SKM500GA123D block diagram
