MWI25-12A7

MWI25-12A7, IXYS IGBT module, 1200V, 50A, IXYS Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $65.00~84.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 31 :	84.00 / Piece
31 ~ 60 :	75.00 / Piece
61 ~ 90 :	65.00 / Piece

PartNumber:: MWI25-12A7

Brand:: IXYS Corporation - ixys | D/C: 09+

Availability:: Supply Ability: 2000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-15

From Other Seller

Part Number:MWI25-12A7
US $65.00 - 84.00
Quantity:

piece

Product Summary

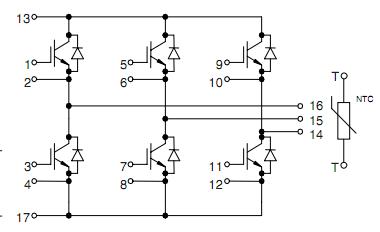

The MWI25-12A7 is an IGBT module. The applications of the MWI25-12A7 include AC motor control, AC servo and robot drives, power supplies.

Parametrics

MWI25-12A7 absolute maximum ratings: (1)VCES TVJ = 25℃ to 150℃: 1200 V; (2)VGES: ±20 V; (3)IC25 TC = 25℃: 50 A; (4)IC80 TC = 80℃: 35 A; (5)RBSOA VGE = ±15 V; RG = 47Ω; TVJ = 125℃, Clamped inductive load; L = 100 μH VCEK≤VCES, ICM: 70 A; (6)tSC(SCSOA), VCE = VCES; VGE = ±15 V; RG = 47Ω; TVJ = 125℃ non-repetitive: 10 μs; (7)Ptot, TC = 25℃: 225 W.

Features

MWI25-12A7 features: (1)NPT IGBT technology; (2)low saturation voltage; (3)low switching losses; (4)switching frequency up to 30 kHz; (5)square RBSOA, no latch up; (6)high short circuit capability; (7)positive temperature coefficient for easy parallelling; (8)MOS input, voltage controlled; (9)ultra fast free wheeling diodes; (10)solderable pins for PCB mounting; (11)package with copper base plate.
