Product Summary

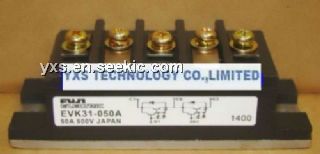

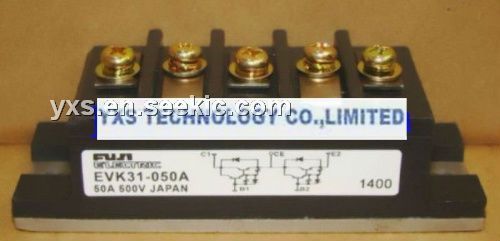

The EVK31-050A is a 3-terminal type 600volts class power bipolar transistor module.
Parametrics
EVK31-050A absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)IC cont.: 50A; (5)Pc: 300W; (6)hFE min.: 100; (7)IC: 50A; (8)VCE: 5V; (9)switching time: ton: 3.0usec, tstg: 12usec, tf: 4usec.
Features
EVK31-050A features: (1)terminal layout in which drive wiring and power wiring do not come across; (2)suited for motor control applications with 200V AC input and power supplies.

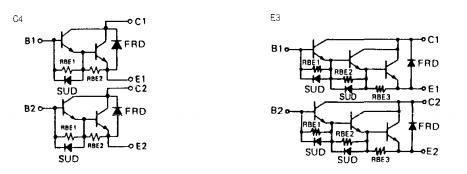

Diagrams
