Product Summary

The SIIP31NAC12T2 is a Quad serializer/deserializer (SerDes) which is capable of transmitting and receiving four independent channels of data at 1.0625 and 2.125 gigabits-per-second (Gbps). Targeted at Fibre Channel applications, the SIIP31NAC12T2 Quad SerDes is designed for power, performance and price. Making use of a robust CMOS design that significantly reduces power dissipation and jitter, the SIIP31NAC12T2 provides a low-cost solution for applications that require multiple-channel, high-performance Fibre Channel SerDes. The applications of the SIIP31NAC12T2 include Hubs and Switches, RAID Systems, High-Speed Backplanes.

Parametrics

SIIP31NAC12T2 absolute maximum ratings: (1)Collector Power Dissipation, 1 device, Pc: 250mW; (2)Collector-Emitter voltage, Vces: 1.8 to 2.5V.

Features

SIIP31NAC12T2 features: (1)Fibre Channel-compliant; (2)Multi-rate: 1.0625 Gbps and 2.125 Gbps; (3)Four independent channels; (4)Advanced-power supply filtering; (5)Single 1.8V supply for core circuits and 2.5V supply for parallel I/O; (6)Power dissipation: 250 mW per channel.

Diagrams

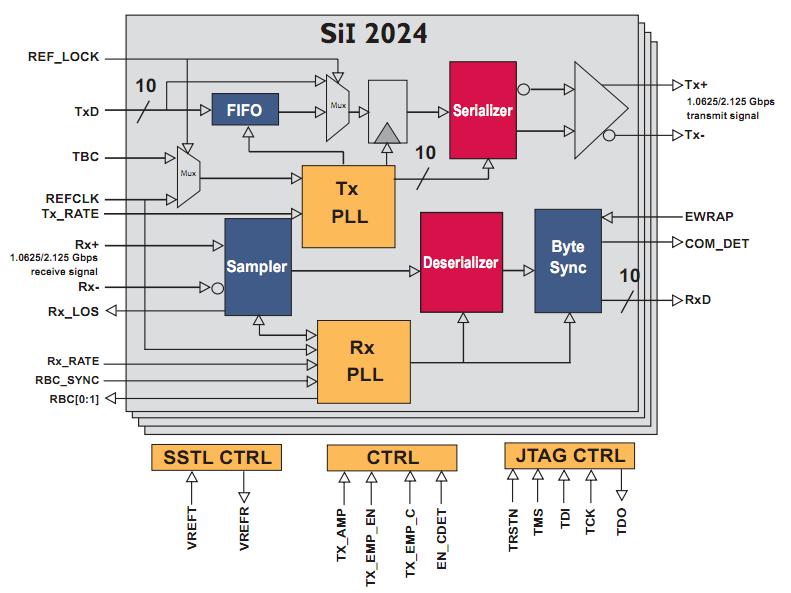

SIIP31NAC12T2 block diagram
