Product Summary

The SKIIP1092GB170-4D is a 2-pack integrated intelligent Power System.

Parametrics

SKIIP1092GB170-4D absolute maximum ratings: (1)VCES: 1700V; (2)VCC: 1200V; (3)VGES: ±20V; (4)IC: 1000(750)A; (5)IF=-IC, TS=25(70)℃: 1000(750)A; (6)IFSM: 8640A; (7)I2T: 373kA2S; (8)TJ: -40 to 150℃; (9)Visol: 4000V.

Features

SKIIP1092GB170-4D features: (1)SKiiP technology inside; (2)CAL diode technology; (3)Integrated current sensor; (4)Integrated temperature sensor; (5)Integrated heat sink; (6)IEC 60721-3-3 class 3K3/IE32; (7)IEC 60068-1 (climate) 40/125/56; (8)UL recognized file no. E63532.

Diagrams

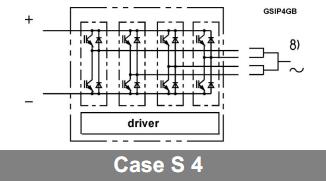

SKIIP1092GB170-4D block diagram
