Product Summary

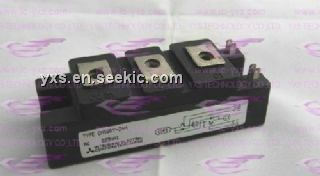

The CM50DU-24H is a dual IGBTMOD U-series module 50 Amperes/1200 Volts. Powerex IGBTMOD Module CM50DU-24H is designed for use in switching applications. Each module consists of two IGBT Transistor in a halfbridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. The component and interconnect of the CM50DU-24H is isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM50DU-24H absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 50 Amperes; (6)Peak Collector Current, ICM: 100 Amperes; (7)Emitter Current(Tc = 25℃), IE: 50 Amperes; (8)Peak Emitter Current, IEM: 100 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃, Tj <150℃), Pc: 400 Watts; (10)Mounting Torque, M5 Main Terminal: 31 in-lb; (11)Mounting Torque, M6 Mounting: 40 in-lb; (12)Weight: 310 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Volts.
Features
CM50DU-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery; (4)Free-Wheel Diode; (5)Isolated Baseplate for Easy; (6)Heat Sinking.

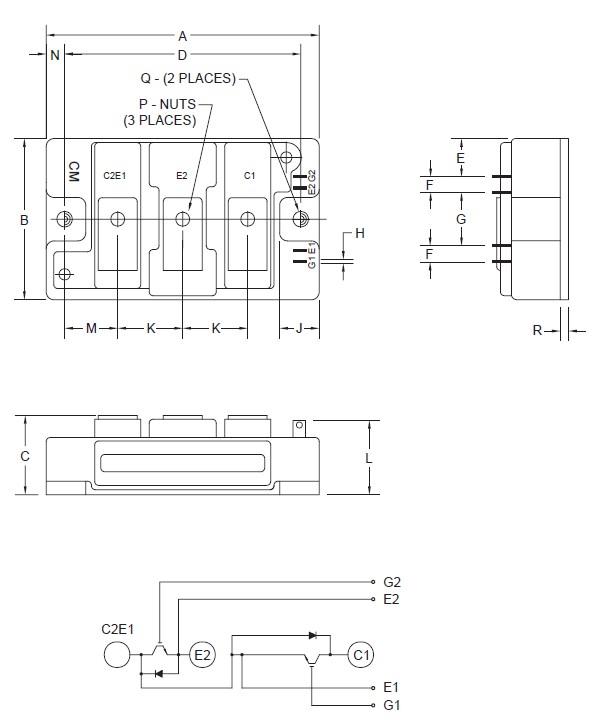

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM50DU-24H |
|
IGBT MOD DUAL 1200V 50A U SER |
Data Sheet |
|
|
||||||
