Product Summary

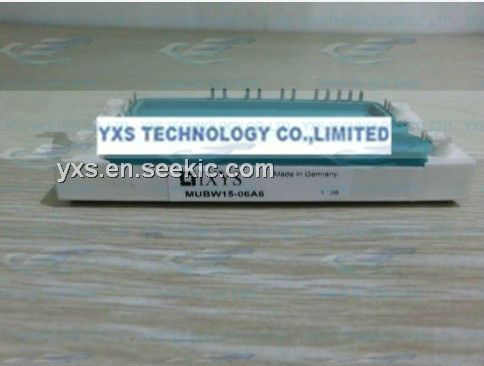

The MUBW15-06A6 is a Converter-Brake-Inverter Module. The applications of the MUBW15-06A6 include AC motor control, AC servo and robot drives.

Parametrics

MUBW15-06A6 absolute maximum ratings: (1)VRRM: 1200 V; (2)IF, TVJ = 25℃: 36 A; (3)IFAVM, TVJ = 150℃; TK = 70℃: 11 A; (4)IFSM, TVJ = 45℃; t = 10 ms sine 50 Hz: 250 A; (5)i2t, TVJ = 125℃: 310 A2s; (6)TVJ: +150℃.

Features

MUBW15-06A6 features: (1)NPT IGBT technology; (2)Square RBSOA, no latchup; (3)Free wheeling diodes with Hiperfast and soft recovery behaviour; (4)Isolation voltage 2500 V~; (5)Built in temperature sense; (6)High level of integration: one module for complete drive system; (7)Direct Copper Bonded Al2O3 ceramic base plate.

Diagrams

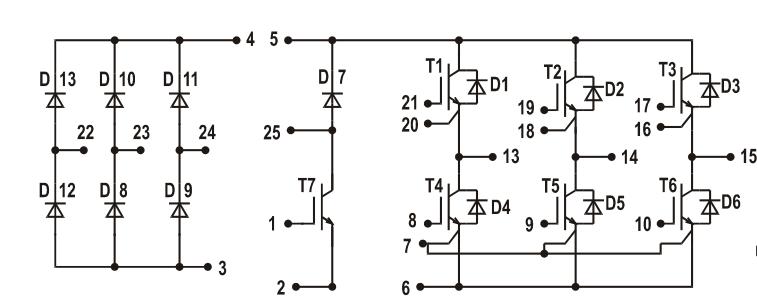

MUBW15-06A6 block diagram
