Product Summary

The MG15G1AL2 is a GTR module. The applications of it include high power switching and motor control.

Parametrics

MG15G1AL2 absolute maximum ratings: (1)collector-base voltage: 600V; (2)collector-emitter sustaining voltage: VCEX(SUS): 600V, VCEO(SUS): 450V; (3)emitter-base voltage: 6V; (4)collector current: IC: 15A, ICP: 30A; (5)collector current: -IC: 15A; (6)base current: 1A; (7)collector power dissipation: 120W; (8)junction temperature: 150℃; (9)storage temperature range: -40℃ to +125℃; (10)isolation voltage: 2500V.

Features

MG15G1AL2 features: (1)the collector is isolated from case; (2)with built-in free wheeling diode; (3)high DC current gain:hFE=100(min.)(IC=15A); (4)low saturation voltage:VCE(SAT)=2V(max.)(IC=15A); (5)high speed:tf=2us(max.)(IC=15A).

Diagrams

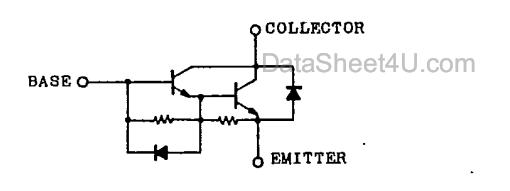

MG15G1AL2 block diagram
