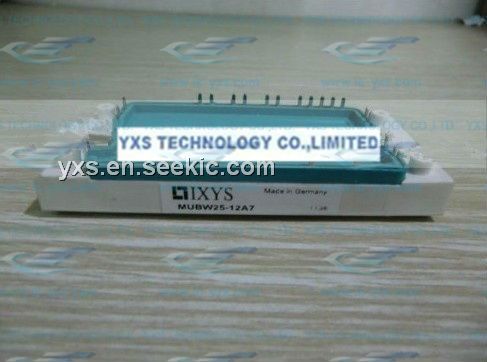

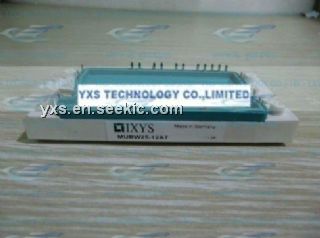

MUBW25-12A7

MUBW25-12A7, converter - brake - inverter module, 1200V, 50A, IXYS Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $70.00~86.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 30 :	86.00 / Piece
31 ~ 60 :	80.00 / Piece
61 ~ 90 :	70.00 / Piece

PartNumber:: MUBW25-12A7

Brand:: IXYS Corporation - ixys | D/C: 10+

Availability:: Supply Ability: 2000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Jack's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-03-15

From Other Seller

Part Number:MUBW25-12A7
US $70.00 - 86.00
Quantity:

piece

Product Summary

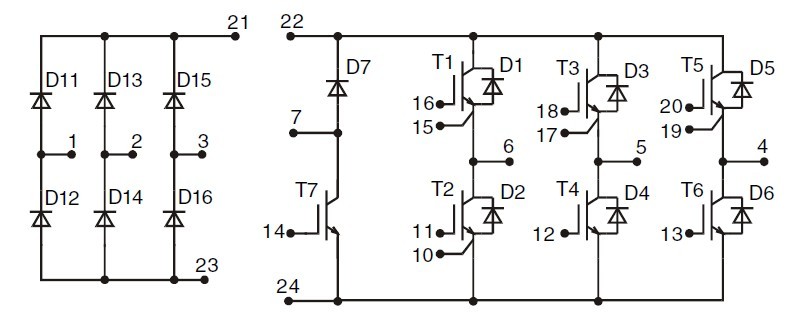

The MUBW25-12A7 is a converter - brake - inverter module. The applications of it include Input from single or three phase grid, Three phase synchronous or asynchronous motor, electric braking operation.

Parametrics

MUBW25-12A7 absolute maximum ratings: (1)On the condition of TVJ = 25℃ to 150℃, VCES: 1200V; (2)VGES: ±20V; (3)VGEM: ±30V; (4)On the condition of TC = 25℃, IC25: 50A; (5)On the condition of TC = 80℃, IC80: 35A; (6)On the condition of VGE =±15 V; RG = 47Ω; TVJ = 125℃, Clamped inductive load; L = 100μH, RBSOA: ICM = 50A VCEK ≤ VCES; (7)On the condition of VCE = VCES; VGE =±15V; RG = 47Ω; TVJ = 125℃ non-repetitive, tSC(SCSOA): 10μs; (8)On the condition of TC = 25℃, Ptot: 225W.

Features

MUBW25-12A7 features: (1)High level of integration - only one power semiconductor module required for the whole drive; (2)Fast rectifier diodes for enhanced EMC behaviour; (3)NPT IGBT technology with low saturation voltage, low switching losses, high RBSOA and short circuit ruggedness; (4)Epitaxial free wheeling diodes with Hiperfast and soft reverse recovery; (5)Industry standard package with insulated copper base plate and soldering pins for PCB mounting; (6)Temperature sense included.
