Product Summary

The SKM200GAH123DKL is an ultra fast IGBT module. The typical applications of the SKM200GAH123DKL are: Switched mode power supplies at fsw>20kHz; Resonant inverters up to 100kHz; Inductive heating; Electronic welders at fsw>20kHz.

Parametrics

SKM200GAH123DKL absolute maximum ratings: (1)VCES, Tj=25℃: 1200V; (2)IC, Tj=150℃: 200A; (3)ICRM, ICRM=2XICNOM: 300A; (4)VGES: ±20V; (5)tpsc, VCC=600V; VGE≤20V; Tj=125℃: 10μs.

Features

SKM200GAH123DKL features: (1)N channel homogeneous Si; (2)Low inductance case; (3)Short tail current with low temperature dependence; (4)High short circuit capability, self limiting to 6 x Icnom; (5)Fast and soft inverse CAL diodes; (6)Isolated copper baseplate using DCB direct copper bonding technology; (7)Large clearance and creepage distance.

Diagrams

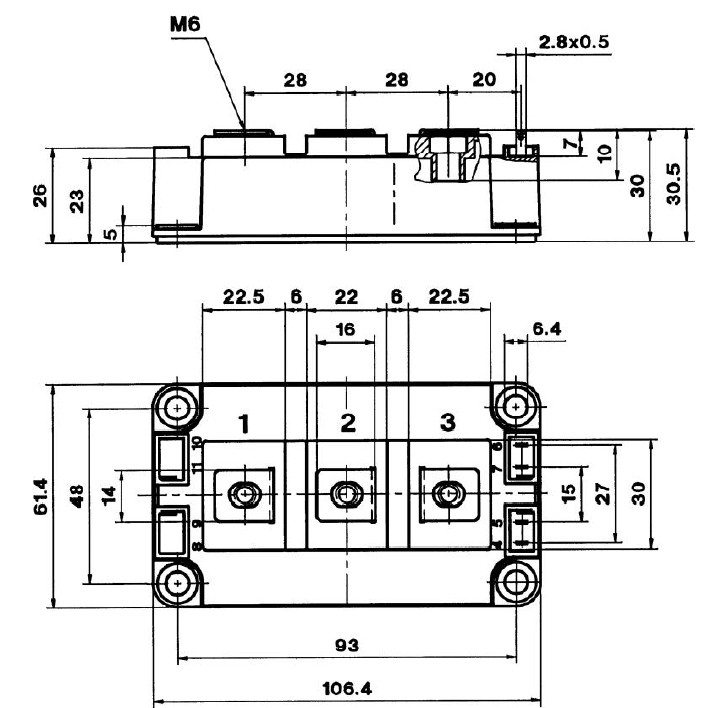

SKM200GAH123DKL block diagram
