Product Summary
The MG60M1AL1 is a silicon channel IGBT.
Parametrics
MG60M1AL1 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200V; (2)Gate-Emitter Voltage: ±20V; (3)Collector Current DC: 600A; (4)Forward Current DC: 600A; (5)Collector Power Dissipation: 3600W; (6)Junction Temperature: 150℃; (7)Storage Temperature Range: -40℃ to 125℃; (8)Isolation Voltage: 2500V (AC 1 minute).
Features
MG60M1AL1 features: (1)High Input Impedance; (2)High Speed: tf=0.5μs; (3)Low Saturation Voltage: VCE(sat)=4.0V; (4)Enhancement-Mode; (5)Outline: TOSHIBA 2-109E1A; (6)Weight: 590g.

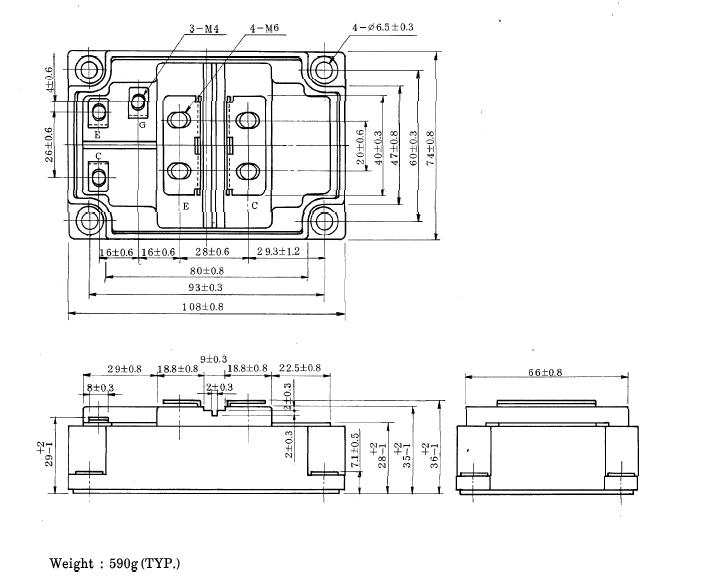

Diagrams
