Product Summary

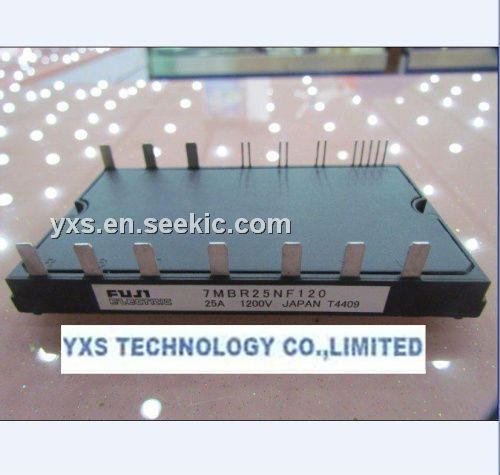

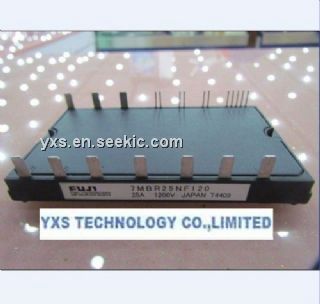

The 7MBR25NF120 is an IGBT module. The applications of the device are inverter for motor drive, AC and DC servo drive amplifier and uninterruptible power supply.
Parametrics
7MBR25NF120 absolute maximum ratings: (1)VCES: 1200V; (2)VGES: ±20V; (3)IC: 25A; (4)IC pulse: 50A; (5)-IC: 25A; (6)PC: 200W; (7)Tj: 150℃; (8)Tstg: -30 to 125℃; (9)Visol: AC2500V.
Features
7MBR25NF120 features: (1)high speed switching; (2)voltage drive; (3)low inductance module structure; (4)converter diode bridge dynamic brake circuit.

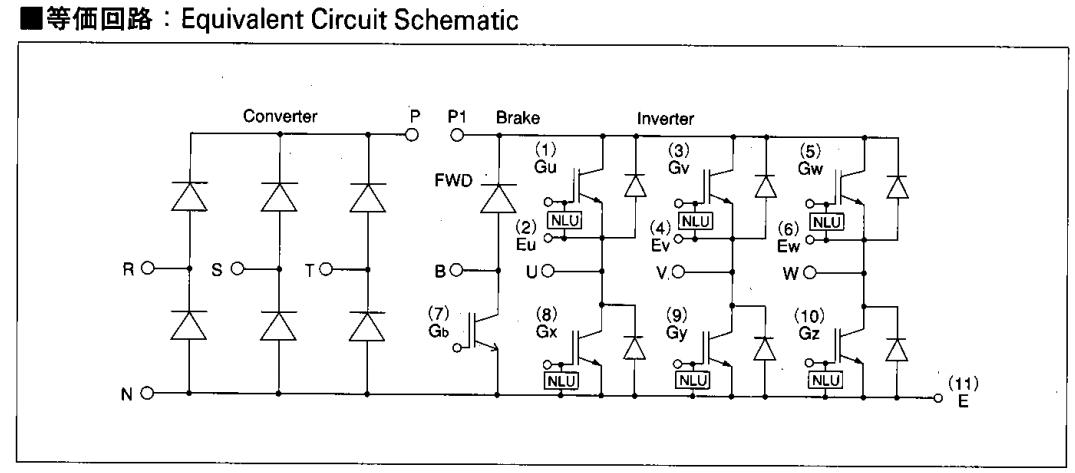

Diagrams
