Product Summary

The 7MBR25NE120 is an IGBT. The applications of the 7MBR25NE120 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.

Parametrics

7MBR25NE120 absolute maximum ratings: (1)Collector-Emitter voltage, VCGS: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC: 25A; ICP: 50A; -IC: 25A; (4)Collector power disspation, PC: 200W; (5)Collector-Emitter voltage, VCES: 1200V; (6)Gate-Emitter voltage, VGES: ±20V; (7)Collector current, IC: 15A; ICP: 30A; (8)Collector power disspation, PC: 120W; (9)Repetitive peak reverse voltage: 1200V; (10)Average forward current, IF(av): 1A; (11)Surge current, IFSM: 50A.

Features

7MBR25NE120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

Diagrams

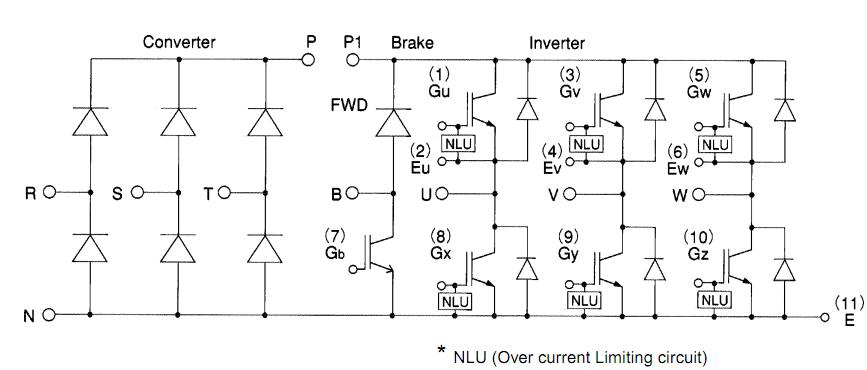

7MBR25NE120 block diagram
