Product Summary

The MUBW35-12A7 is a Converter-Brake-Inverter Module.

Parametrics

MUBW35-12A7 absolute maximum ratings: (1)VRRM: 1600 V; (2)IFAV TC = 80℃; sine 180°: 30 A; (3)IDAVM TC = 80℃; rectangular; d = 1/3; bridge: 80 A; (4)IFSM TVJ = 25℃; t = 10 ms; sine 50 Hz: 300 A; (5)Ptot; (6)TC = 25℃: 100 W.

Features

MUBW35-12A7 features: (1)High level of integration - only one power semiconductor module required for the whole drive; (2)NPT IGBT technology with low saturation voltage, low switching; (3)losses, high RBSOA and short circuit ruggedness; (4)Epitaxial free wheeling diodes with Hiperfast and soft reverse recovery; (5)Industry standard package with insulated copper base plate and soldering pins for PCB mounting; (6)Temperature sense included.

Diagrams

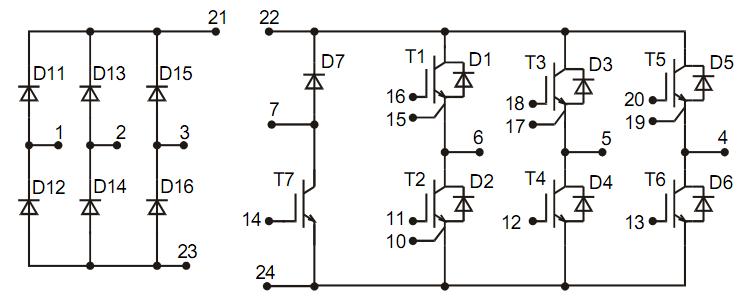

MUBW35-12A7 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MUBW35-12A7
MUBW35-12A7

Ixys

Discrete Semiconductor Modules 35 Amps 1200V

Data Sheet

Negotiable
