Product Summary
The 7MBR10NE120 is an IGBT module. The applications of the 7MBR10NE120 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7MBR10NE120 absolute maximum ratings: (1)Collector-Emitter voltage, VCGS: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC: 25A; ICP: 50A; -IC: 25A; (4)Collector power disspation, PC: 200W; (5)Collector-Emitter voltage, VCES: 1200V; (6)Gate-Emitter voltage, VGES: ±20V; (7)Collector current, IC: 15A; ICP: 30A; (8)Collector power disspation, PC: 120W; (9)Repetitive peak reverse voltage: 1200V; (10)Average forward current, IF(av): 1A; (11)Surge current, IFSM: 50A.
Features
7MBR10NE120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

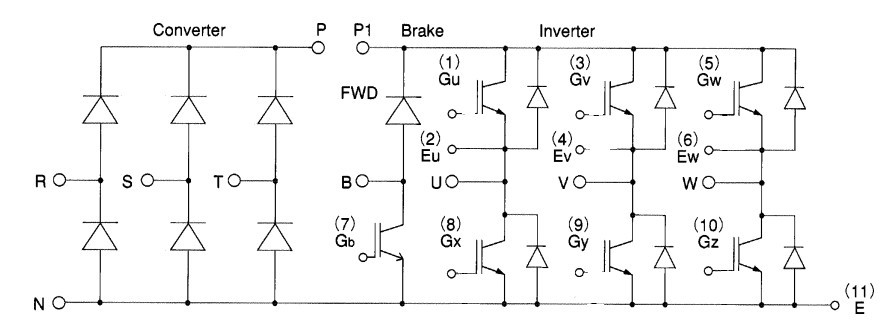

Diagrams
