The MG100Q2YS40 is an N channel IGBT.
Parametrics
MG100Q2YS40 absolute maximum ratings: (1)Collector emitter Voltage VCES: 1200V; (2)Gate Emitter Voltage VGES: ±20V; (3)Collector Current, DC IC: 100A; 1ms ICP: 200A; (4)Collector Power dissipation, Pc: 670W; (5)junction Temperature, Tj: 150℃; (6)Storage Temperature range Tstg: -40 to 125℃; (7)isolation Voltage VIsol: 2500V; (8)screw torque: 3/3 Nm.
Features
MG100Q2YS40 features: (1)High input impednace; (2)high speed: tf=0.5 μs, trr=0.5μs; (3)Low saturation voltage: VCE(sat)=4.0V; (4)enhancement mode; (5)Includes a complete half bridge in one package; (6)The electrodes are Isolated from case.

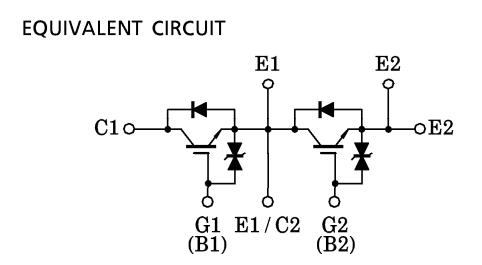

Diagrams
