Product Summary

The FS300R17KE3 is an EconoPACK module with trench/fieldstop IGBT and EmCon3 diode.

Parametrics

FS300R17KE3 absolute maximum ratings: (1)Collector emitter voltage, Tvj= 25℃, VCES: 1700V; (2)DC collector current: Tc= 80℃, Tvj= 150℃, ICnom: 300A; Tc= 25℃, Tvj= 150℃, IC: 375A; (3)Repetitive peak collector current, tp= 1ms, ICRM: 600A; (4)Total power dissipation, Tc= 25℃, Tvj= 150℃, Ptot: 1650W; (5)Gate-emitter peak voltage, VGES: ±20V.

Features

FS300R17KE3 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function.

Diagrams

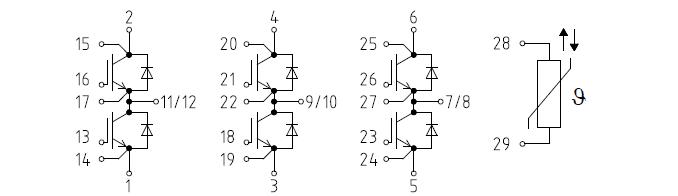

FS300R17KE3 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS300R17KE3
FS300R17KE3
Infineon Technologies
IGBT Modules 1700V 300A 3-PHASE
Data Sheet
0-2: $477.85
2-10: $430.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FS300R12KE3
FS300R12KE3
Infineon Technologies
IGBT Modules 1200V 300A 3-PHASE
Data Sheet
0-1: $363.15
1-10: $326.84
FS300R12KE4
FS300R12KE4
Infineon Technologies
IGBT Modules N-CH 1.2KV 450A
Data Sheet
0-1: $326.48
1-10: $293.81
FS300R12KF4
FS300R12KF4
Infineon Technologies
IGBT Modules 1200V 300A 6-PACK
Data Sheet
0-1: $1,503.68
1-3: $1,353.31
3-5: $1,202.95
FS300R16KF4
FS300R16KF4
Infineon Technologies
IGBT Modules 1600V 300A F/DIODE
Data Sheet
0-1: $1,353.49
1-3: $1,218.14
3-5: $1,082.80
FS300R17KE3
FS300R17KE3
Infineon Technologies
IGBT Modules 1700V 300A 3-PHASE
Data Sheet
0-2: $477.85
2-10: $430.06
FS300R17KE4
FS300R17KE4
Infineon Technologies
IGBT Modules IGBT 1700V 300A
Data Sheet
0-3: $429.00
3-10: $386.40
