Product Summary
The CM800HB-50H is a high power switching use insulated type module. The applications of the CM800HB-50H include Inverters, Converters, DC choppers, Induction heating, DC to DC converters.
Parametrics
CM800HB-50H absolute maximum ratings: absolute maximum ratings: (1)Collector-Emitter Voltage: 2500 V; (2)Gate-Emitter Voltage: ±20 V; (3)Collector Current: 800 A; (4)Forward Current: 1600 A; (5)Collector Power Dissipation (Tc = 25℃): 10400 W; (6)Junction Temperature: -40 to 150 ℃; (7)Storage Temperature Range: -40 to 125 ℃; (8)Isolation Voltage: 6000 (AC 1min) V; (9)Screw Torque: 6.67 to 13.00 N·m.
Features
CM800HB-50H features: (1)IC: 800A; (2)VCES: 2500V; (3)Insulated Type; (4)1-element in a pack.

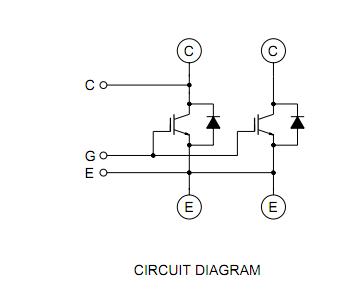

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CM800HB-50H |
Other |
|
Data Sheet |
Negotiable |
|
||||||
