Product Summary

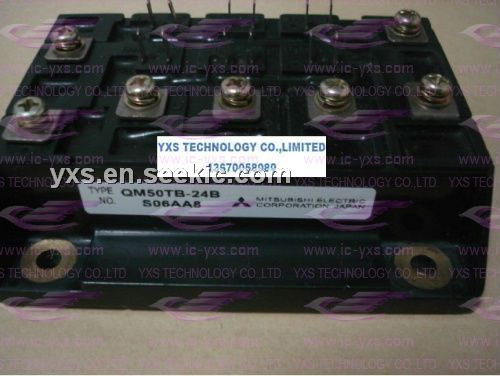

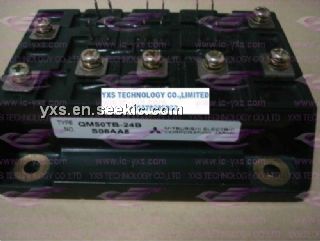

The QM50TB-24B is a transistor module. The applications of the QM50TB-24B include Inverters, Servo drives, DC motor controllers, NC equipment, Welders.

Parametrics

QM50TB-24B absolute maximum ratings: (1)Collector-emitter voltage, VCEX (SUS): 1200V; (2)Collector-emitter voltage, VCEX: 1200V; (3)Collector-base voltage, VCBO: 1200V; (4)Emitter-base voltage, VEBO: 7V; (5)Collector current, IC: 50A; (6)Collector reverse current, -IC: 50A; (7)Collector dissipation, PC: 400W; (8)Base current, IB: 3A; (9)Surge collector reverse current (forward diode current), -ICSM: 500A; (10)Junction temperature, Tj: -40 to 150℃; (11)Storage temperature, Tstg: -40 to 125℃; (12)Isolation voltage, Viso: 2500V.

Features

QM50TB-24B features: (1)IC Collector current: 50A; (2)VCEX Collector-emitter voltage: 1200V; (3)hFE DC current gain: 750; (4)Insulated Type; (5)UL Recognized, Yellow Card No. E80276 (N).

Diagrams

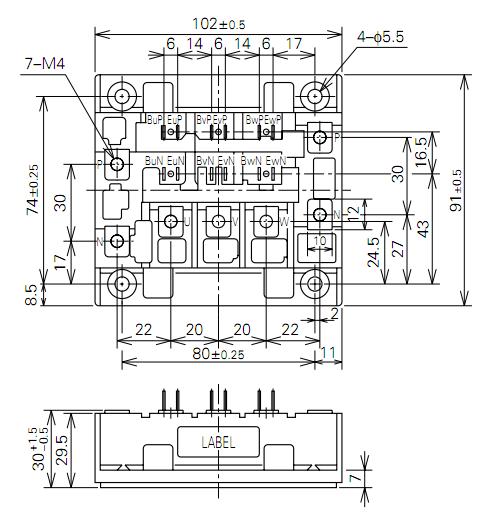

QM50TB-24B block diagram
