Product Summary
The CM75E3U-12F is an IGBT module. The application of the CM75E3U-12F includes Brake.
Parametrics
CM75E3U-12F absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 75 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 150A; (7)Emitter Current (Tc = 25℃), IE: 75A; (8)Peak Emitter Current, IEM: 150A; (9)Maximum Collector Dissipation (Tj < 150℃) (Tc = 25℃), Pc: 310W; (10)Mounting Torque, M5 Mounting: 2.5 to 3.5 N·m; (11)Weight: 190 Grams; (12)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500V.
Features
CM75E3U-12F features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

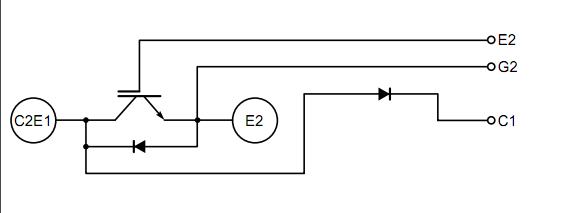

Diagrams
