Product Summary

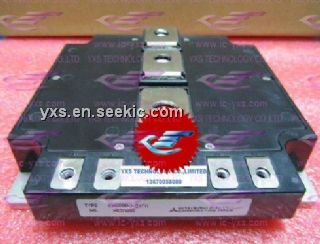

The CM600DU-24FA is a Mitsubishi IGBT Module designed for use in switching applications. Each module consists of two IGBTs in a half-bridge configuration with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and interconnects of the CM600DU-24FA are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Parametrics
CM600DU-24FA absolute maximum ratings: (1)Junction Temperature, Tj: -40 to 150 ℃; (2)Storage Temperature, Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT), VCES: 600 Volts; (4)Gate-Emitter Voltage (C-E SHORT), VGES: ±20 Volts; (5)Collector Current (Tc = 25℃), IC: 50 Amperes; (6)Peak Collector Current (Tj ≤ 150℃), ICM: 100Amperes; (7)Emitter Current (Tc = 25℃), IE: 50 Amperes; (8)Peak Emitter Current, IEM: 100 Amperes; (9)Maximum Collector Dissipation (Tc = 25℃), Pc: 250 Watts; (10)Mounting Torque, M5 Main Terminal: 95 N · m; (11)Mounting Torque, M6 Mounting: 40 N · m; (12)Weight: 1200 Grams; (13)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.) Viso: 2500 Vrms.
Features
CM600DU-24FA features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery Free-Wheel Diode; (4)High Frequency Operation; (5)Isolated Baseplate for Easy Heat Sinking.

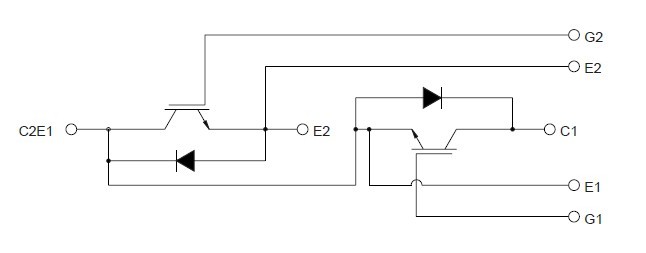

Diagrams
