Product Summary

The CM400DY-24A is an IGBT module suitable for AC drive inverters & Servo controls, etc.

Parametrics

CM400DY-24A absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Maximum collector dissipation, PC: 270W; (4)Junction temperature, Tj: -40 to 150℃; (5)Storage temperature, Tstg: -40 to 125℃; (6)Isolation voltage, VISO: 2500V; (7)Weight: 580g; (8)collector current, IC: 400A; ICM: 800A; (9)emitter current, IE: 400A; IEM: 800A.

Features

CM400DY-24A features: (1)IC: 400A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

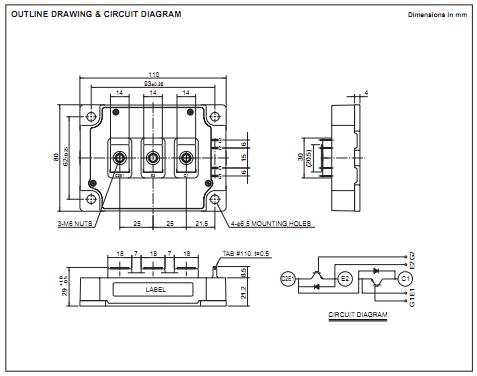

CM400DY-24A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM400DY-24A
CM400DY-24A

IGBT MOD DUAL 1200V 400A A SER
Data Sheet
Negotiable
