Product Summary

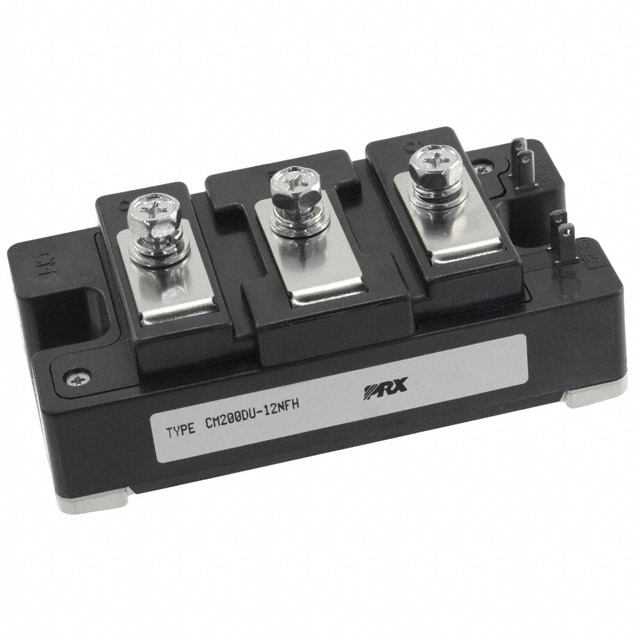

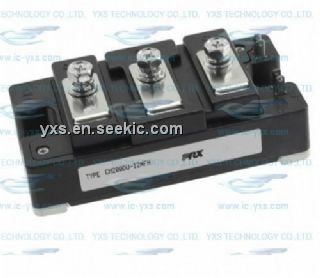

The CM200DU-12NFH is an IGBT module. The applications of the CM200DU-12NFH include Gradient amplifier, Induction heating, power supply, etc.

Parametrics

CM200DU-12NFH absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, vges: ±20V; (3)Collector current, IC: 200A; ICM: 400A; (4)Emitter current, IE: 200A; IEM: 400A; (5)Maximum collector dissipation, PC: 590W; (6)Maximum collector dissipation, PC: 830W; (7)Junction temperature, TJ: -40 to 150℃; (8)Storage temperature, Tstg: -40 to 125℃; (9)Isolation voltage, Visol: 2500V.

Features

CM200DU-12NFH features: (1)IC: 200A; (2)VCES: 600V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

CM200DU-12NFH block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CM200DU-12NFH
CM200DU-12NFH


IGBT MOD DUAL 600V 200A NFH SER

Data Sheet

0-1: $73.39
1-10: $68.60
10-100: $63.80
100-250: $61.88
250-500: $60.44
500-1000: $57.56
