Product Summary
The CM15MD1-24H is a 3 Phase Converter + 3 Phase Inverter. The applications of the CM15MD1-24H include AC Motor Control, Motion/Servo Control, General Purpose Inverters, Robotics.
Parametrics
CM15MD1-24H absolute maximum ratings: (1)Collector-Emitter Voltage (G-E Short), VCES: 1200 Volts; (2)Gate-Emitter Voltage (C-E Short), VGES: ±20 Volts; (3)Collector Current, IC: 15 Amperes; (4)Collector Current (Pulse), ICM: 30 Amperes; (5)Emitter Current, IE: 15 Amperes; (6)Emitter Current (Pulse), IEM: 30 Amperes; (7)Maximum Collector Dissipation, PC: 66 Watts; (8)Power Device Junction Temperature, Tj: -40 to 150℃; (9)Storage Temperature, Tstg: -40 to 125℃; (10)Mounting Torque, M4 Mounting Screws: 13 in-lb; (11)Module Weight (Typical): 100 Gram; (12)Isolation Voltage, AC 1 minute, 60Hz, VRMS: 2500 Volts.
Features
CM15MD1-24H features: (1)Low Drive Power; (2)Low VCE(sat); (3)Discrete Super-Fast Recovery (70ns) Free-Wheel Diodes; (4)High Frequency Operation (20-25 kHz); (5)Isolated Baseplate for Easy Heat Sinking.

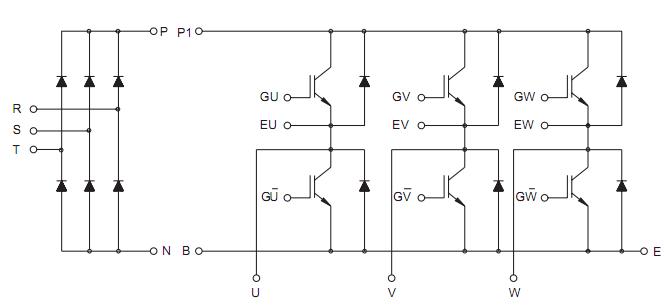

Diagrams
