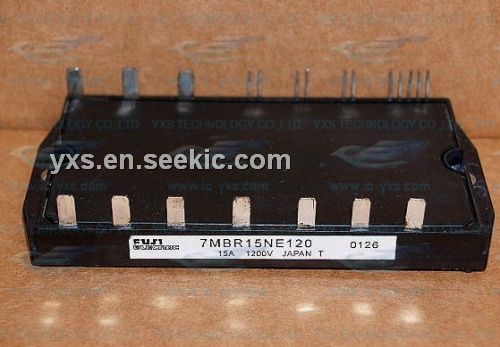

The 7MBR15NE120 is an IGBT module. The applications of the 7MBR15NE120 include Inverter for Motoe Drive, AC and DC Servo Drive Amplifier, Uninterruptible Power Supply.
Parametrics
7MBR15NE120 absolute maximum ratings: (1)Collector-Emitter voltage, VCGS: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current, IC: 25A; ICP: 50A; -IC: 25A; (4)Collector power disspation, PC: 200W; (5)Collector-Emitter voltage, VCES: 1200V; (6)Gate-Emitter voltage, VGES: ±20V; (7)Collector current, IC: 15A; ICP: 30A; (8)Collector power disspation, PC: 120W; (9)Repetitive peak reverse voltage: 1200V; (10)Average forward current, IF(av): 1A; (11)Surge current, IFSM: 50A.
Features
7MBR15NE120 features: (1)High Speed Switching; (2)Voltage Drive; (3)Low Inductance Module Structure; (4)Converter Diode Bridge Dynamic Brake Circuit.

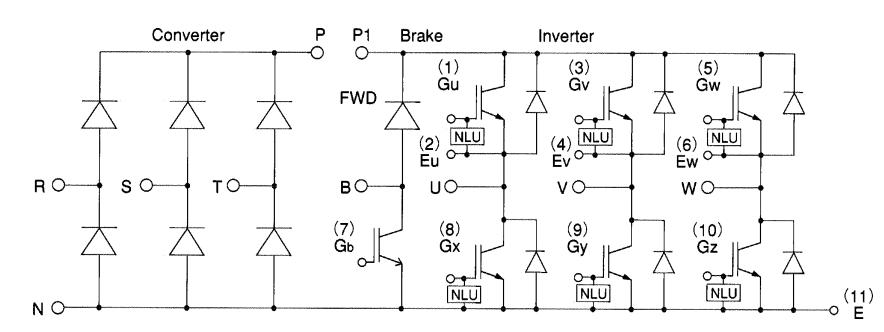

Diagrams
