Product Summary

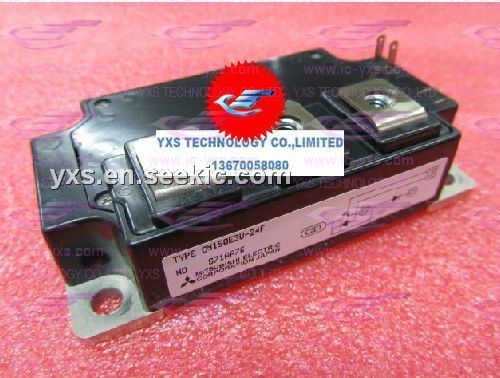

The CM150E3U-24F is an IGBT module. The application of the CM150E3U-24F includes Brake.
Parametrics
CM150E3U-24F absolute maximum ratings: (1)Collector-emitter voltage, VCES: 1200V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, IC: 150A; ICM: 300A; (4)Emitter current, IE: 150A; IEM: 300A; (5)Maximum collector dissipation, PC: 600W; (6)Repetitive peak reverse voltage, VRRM: 1200V; (7)Forward current, IF: 150A; IFM: 300A; (8)Junction temperature, TJ: -40 to 150℃; (9)Storage temperature, Tstg: -40 to 125℃; (10)Isolation voltage, Viso: 2500V.
Features
CM150E3U-24F features: (1)IC: 150A; (2)VCES: 1200V; (3)Insulated Type; (4)1-element in a pack.

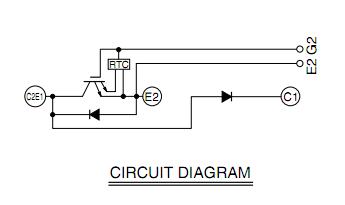

Diagrams
