Product Summary

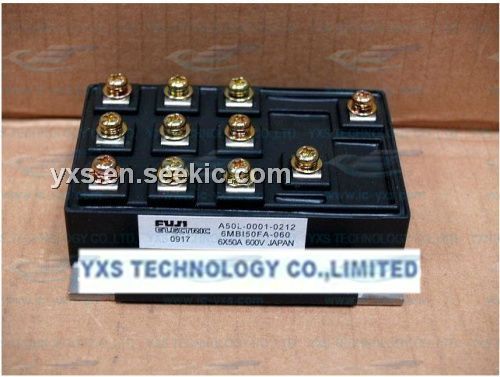

The 6MBI50FA-060 is an IGBT module. The applications of it are inverter for motor drive, AC-DC servo drive amplifier, uninterruptible power supply, industrial machines.

Parametrics

6MBI50FA-060 absolute maximum ratings: (1)collector-emitter voltage: 600V; (2)gate-emitter voltage: ±20V; (3)collector current: IC: 50A, ICpluse: 100A, -IC: 50A, -IC pulse: 100A; (4)max. power dissipation: 220W; (5)operating temperature: +150℃; (6)storage temperature: -40℃ to +125℃; (7)isolation voltage: 2500V.

Features

6MBI50FA-060 features: (1)low saturation voltage; (2)voltage drive; (3)variety of power capacity series.

Diagrams

6MBI50FA-060 block diagram
