Product Summary

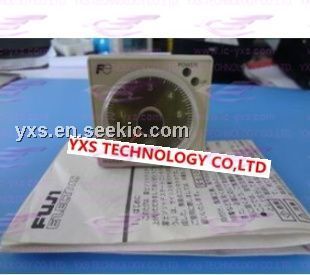

The MS4SA-CE is a time relay.

Parametrics

MS4SA-CE absolute maximum ratings: (1)Rated voltage: AC110-240 V; (2)Contact Rating: 16A @ 120/240VAC 50/60Hz, 16A @ 28VDC; (3)Minimum Switching Requirement: 100mA @ 5VDC or 0.5W; (4)Contact Resistance: 50mΩ.

Features

MS4SA-CE features: (1)Applications: Time; (2)Series: 3TH82; (3)Contact form: Normally closed; (4)Current properties: DC; (5)Dimensions: Ultra-small; (6)Contact load: Medium Power; (7)Protection features: open.

Diagrams

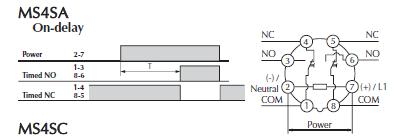

MS4SA-CE block diagram
