Product Summary
The G5LA-1A4-12V is a cubic, single-pole 10A power relay.
Parametrics
G5LA-1A4-12V absolute maximum ratings: (1)Must operate voltage: 75% max.; (2)Must release voltage: 10% min.; (3)Rated Voltage: 12VDC; (4)Rated current: 30mA; (5)Coil resistance: 400Ω.
Features
G5LA-1A4-12V features: (1)Economical cube relay with universal terminal footprint; (2)Conforms to VDE0435, CQC; (3)UL recognized/ CSA certified.; (4)High switching power: 10A @ 250VAC; (5)Withstands impulse of up to 4,500V; (6)Coil power consumption: 360mW; (7)UL Class F coil insulation type also available; (8)Tracking resistance: CTI>250; (9)RoHS Compliant.

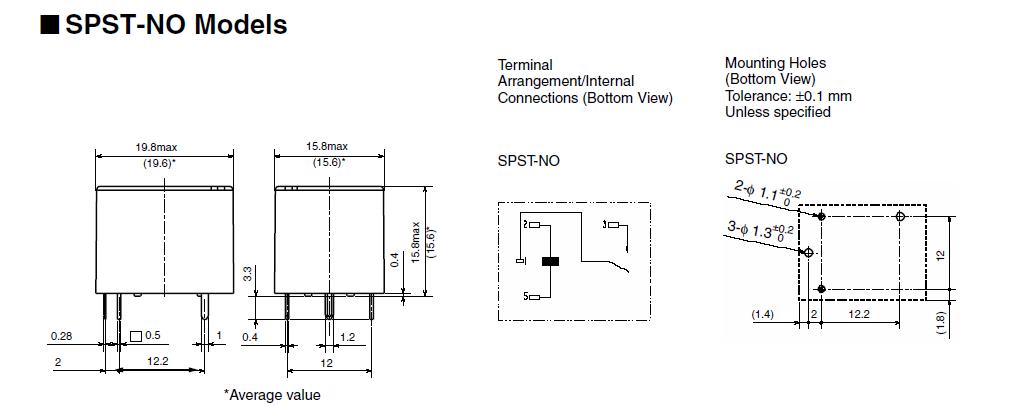

Diagrams
