Product Summary
The g7sa-2a2b-12v is a slim relay with forcibly guided contacts conforming to EN standards.
Parametrics
g7sa-2a2b-12v specifications: (1)Rated voltage: 24 VDC; (2)Rated current: 4 poles: 15 mA; 6 poles: 20.8 mA; (3)Coil resistance: 4 poles: 1,600 Ω; 6 poles: 1,152 Ω; (4)Must-operate voltage: 75% max. (V); (5)Must-release voltage: 10% min. (V); (6)Max. voltage: 110% (V); (7)Power consumption: 4 poles: Approx. 360 mW; 6 poles: Approx. 500 mW.
Features
g7sa-2a2b-12v features: (1)EN50205 Class A, approved by VDE; (2)Ideal for use in safety circuits in production machinery; (3)Four-pole and six-pole Relays are available; (4)The Relay terminal arrangement simplifies PWB pattern design; (5)Reinforced insulation between inputs and outputs; Reinforced insulation between some poles.; (6)UL, CSA approval.

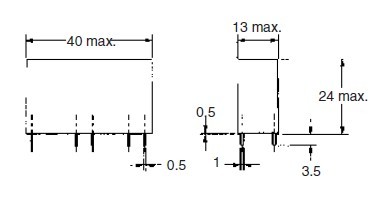

Diagrams
