Product Summary

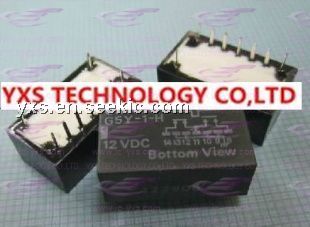

The G5Y-1-12V is a kind of low signal relay.

Parametrics

G5Y-1-12V absolute maximum ratings: (1)Rated load: 24 VAC 0.01 A, 24 VDC 0.01 A, 1 W at 900 MHz; (2)Contact material: Au clad Cu alloy; (3)Carry current: 0.10 A; (4)Max. operating voltage: 30 VAC, 30 VDC; (5)Max. operating current: 0.10 A; (6)Max. switching capacity: 1 VA, 1W; (7)Min. permissible load: 10 mA at 10 mVDC.

Features

G5Y-1-12V features: (1)Miniature 9.0 H x 11.5 W x 20.5 L mm (0.35 H x 0.45 W x 0.81 L in); (2)Shield plate and resin-molded relay base provide excellent high-frequency characteristics: isolatioof 68 dB (typ.), insertioloss of 0.20 dB (typ.), and VSWR of 1.30 (typ.) at 900 MHz; (3)Ultrasmall and lightweight with pickup coil power of 170 mW (112 mW for high-sensitivity type); (4)Plastic sealed constructiohighly resistant to adverse environmental conditions; (5)High shock resistance.

Diagrams

G5Y-1-12V circuit diagram
