Product Summary

The g6j-2p-y-4.5v is a Surface-mounting Relay.



Parametrics

g6j-2p-y-4.5v absolute maximum ratings: (1)Max. carry current: 1 A; (2)Max. operating voltage: 125 VAC, 110 VDC; (3)Max. operating current: 1 A; (4)Max. switching capacity: 37.5 VA, 30 W; (5)Min. permissible load (see note): 10m VDC, 10μA; (6)Contact resistance (See note 1): 100 mΩ max.; (7)Insulation resistance (See note 3): 1,000 MΩ min. (at 500 VDC); (8)Ambient temperature: −40 to 85°C with no icing or condensation; (9)Humidity: 5% to 85% RH; (10)Weight: Approx.1.0 g.

Features

g6j-2p-y-4.5v features: (1)Dimensions of 9H x 5.7W x 10.6L mm provide a mounting area reduction of approx. 56% when compared with the OMRON G6S.; (2)Dielectric strength of 1,500 VAC and an impulse withstand voltage of 2,500 V for 2 x 10 μs (conforms to Telcordia specifications (formerly Bellcore)).; (3)Conforms to FCC Part 68 requirments (1,500 V,10 x 160 μs).; (4)Single-winding latching models to save energy.; (5)UL recognized / CSA certified.; (6)RoHS Compliant.

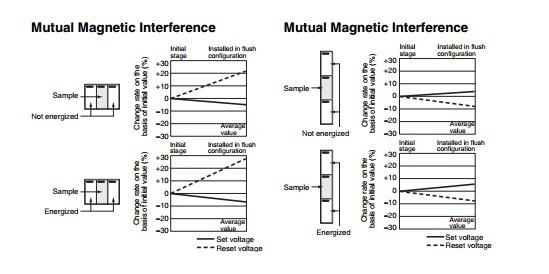

Diagrams

g6j-2p-y-4.5v pin connection
