Product Summary
The G7SA-2A2B-24V is a relay with forcibly guided contacts.
Parametrics
G7SA-2A2B-24V absolute maximum ratings: (1)Rated voltage: 24 VDC; (2)Rated current, 4 poles: 15 mA; 6 poles: 20.8 mA; (3)Coil resistance, 4 poles: 1,600 W; 6 poles: 1,152 W; (4)Must-operate voltage: 75% max. (V); (5)Must-release voltage: 10% min. (V); (6)Max. voltage: 110% (V); (7)Power consumption, 4 poles: Approx. 360 mW; 6 poles: Approx. 500 mW.
Features
G7SA-2A2B-24V features: (1)EN50205 Class A, approved by VDE; (2)Ideal for use in safety circuits in production machinery; (3)Four-pole and six-pole Relays are available; (4)The Relay terminal arrangement simplifies PWB pattern design; (5)Reinforced insulation between inputs and outputs. Reinforced insulation between some poles; (6)UL, CSA approval.

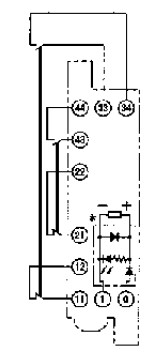

Diagrams
