Product Summary

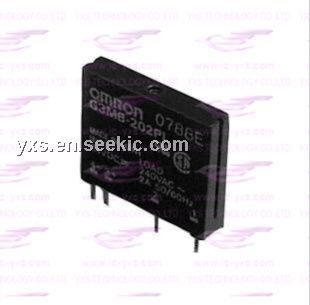

The G3MB-202P-24V is a Solid State Relay.



Parametrics

G3MB-202P-24V absolute maximum ratings: (1)Operate time: 1/2 of load power source cycle + 1 ms max.; (2)Release time: 1/2 of load power source cycle + 1 ms max.; (3)Output ON voltage drop: 1.60 V (RMS)max.; (4)Leakage current: 1.50 mA at 200 VAC; (5)Non-repetitive peak surge: 30 A; (6)Output PIV (VDRM): 600 V; (7)Junction temperature (Tj): 125°C (257°F)max.; (8)Insulation resistance: 1,000 MΩ min. at 500 VDC; (9)Dielectric strength: 2500 VAC, 50/60 Hz for 1 minute; (10)Vibration Malfunction: 10 to 55 Hz, 0.75 mm (0.03 in)double amplitude; (11)Shock Malfunction: Approx. 1,000 m/s 2 (approx. 100 G).

Features

G3MB-202P-24V features: (1)Bottom is approximately 3 times smaller than G3M.; (2)Low cost “SIP” package switches up to 2A loads.; (3)Built in Snubber circuit and input resistor as option.; (4)Two footprints available for design flexibility.; (5)The G3MB-202PEG-4-DC20MA crosses directly to the Motorola M0C2A-60 series power triac.

Diagrams

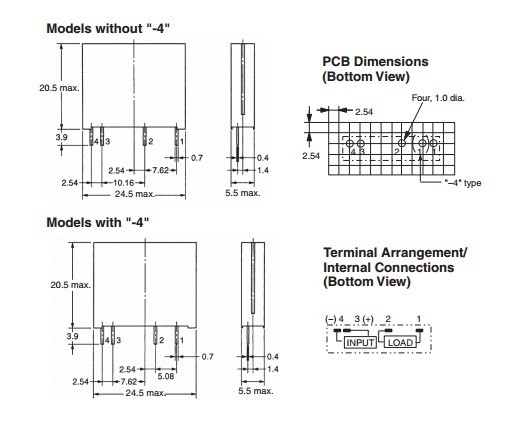

G3MB-202P-24V pin connection
