Product Summary

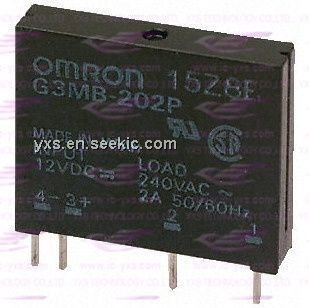

The G3MB-202P-5V is a low cost Subminiature PCB mounting 2 amp Single in-line package (SIP) SSR.
Parametrics
G3MB-202P-5V absolute maximum ratings: (1)Release time: 1/2 of load power source cycle + 1 ms max.; (2)Output ON voltage drop: 1.60 V (RMS) max.; (3)Leakage current: 1.50 mA at 200 VAC; (4)Non-repetitive peak surge: 30 A; (5)Junction temperature (Tj): 125°C (257°F) max.; (6)Insulation resistance: 1,000 MΩ min. at 500 VDC.
Features
G3MB-202P-5V features: (1)Bottom is approximately 3 times smaller than G3M; (2)Low cost SIP package switches up to 2A loads; (3)Built in Snubber circuit and input resistor as option; (4)Two footprints available for design flexibility; (5)The G3MB-202PEG-4-DC20MA crosses directly to the Motorola M0C2A-60 series power triac.

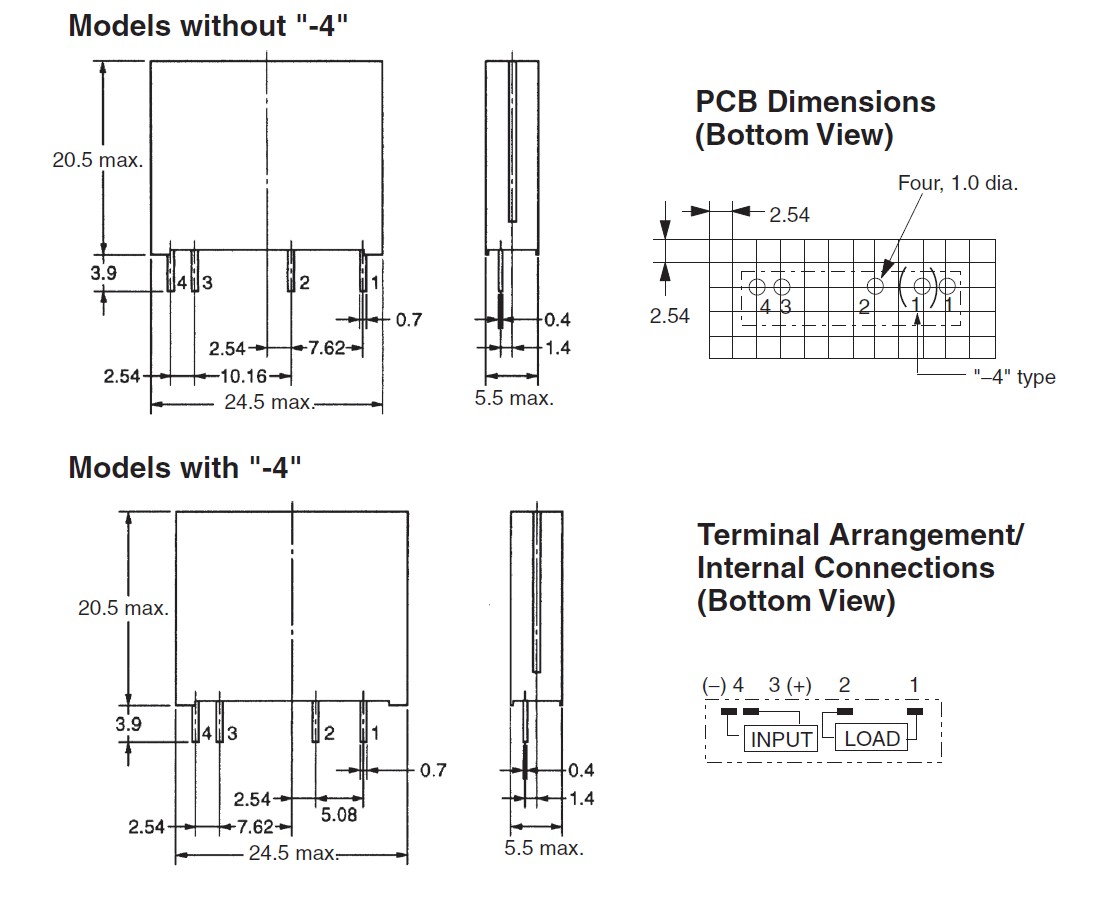

Diagrams
