Product Summary

The H3DE-S2 is a multifunction timer.

Parametrics

H3DE-S2 absolute maximum ratings: (1)Rated supply voltage: 24 to 230 VAC/DC (50/60 Hz) 12 VDC (H3DE-M2 model only); (2)Operating voltage range: 85% to 110% of rated supply voltage; (3)Power reset: Minimum power-OFF time: 0.1 s; (4)Reset voltage: 2.4 VAC/DC max.; (5)Control output: Contact output: 5 A at 250 VAC with resistive load (cosφ = 1); 5 A at 30 VDC with resistive load (cosφ = 1); (6)Ambient operating temperature: -10 to 55°C (with no icing); (7)Ambient operating humidity: 35% to 85%.

Features

H3DE-S2 features: (1)Wide AC/DC power supply range (24 to 230 VAC/DC) minimizes inventory; (2)12 VDC available in H3DE-M model; (3)Programmable contacts (available in -M2 and -S2 models) can enable and disable a self-holding relay circuit; (4)Eight operating modes in the H3DE-M (four in the H3DE-S) offer wide application flexibility; (5)Time setting range 0.10 sec to 120 hrs; (6)Finger protection terminal block.

Diagrams

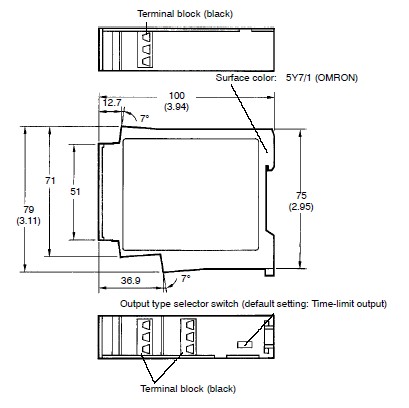

H3DE-S2 dimension figure

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

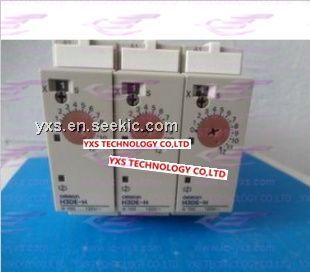

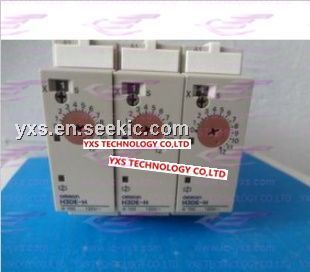

H3DE-S2 AC/DC24-230
H3DE-S2 AC/DC24-230


RELAY TIMER ANALOG DIN 4 MODE

Data Sheet

Negotiable
H3DE-S2AC/DC24-230
H3DE-S2AC/DC24-230

Omron Industrial

Stopwatches & Timers STANDARD SOLID STATE

Data Sheet

Negotiable
