Product Summary

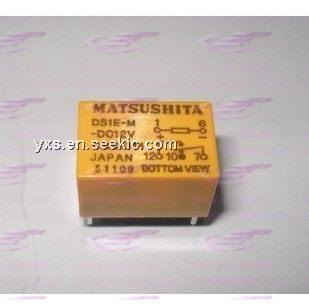

The DS1E-M-DC12V is a highly sensitive 1500 V FCC surge withstanding miniature relay.

Parametrics

DS1E-M-DC12V absolute maximum ratings: (1)Max. operating speed: 20 cpm at rated load 50 cps at low level load; (2)Initial insuration resistance*1: 400MW (at 500 V DC); (3)FCC surge voltage between contacts and coil: 1,500 V; (4)Temperature rise (at nominal voltage, Contact current: 2A): Max. 65℃; (5)Ambient temp.: –40℃ to +70℃; (6)Coil voltage: DC12V.

Features

DS1E-M-DC12V features: (1)High sensitivity: 200 mW pick-up power, 100 mW pick-up power types available; (2)Latching types available; (3)High switching capacity: 60 W, 125 V A; (4)High breakdown voltage: 1,500 V FCC surge between open contacts, 1,000 V AC between open contacts; (5)DIP-1C type can be used with 14 pin IC socket, 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets; (6)Gold-cap silver palladium types available for 2 Form C type; (7)Bifurcated contacts are standard.

Diagrams

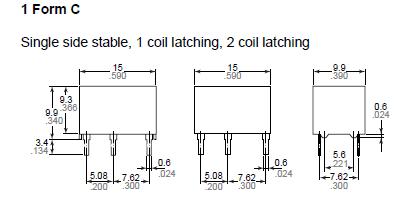

DS1E-M-DC12V package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

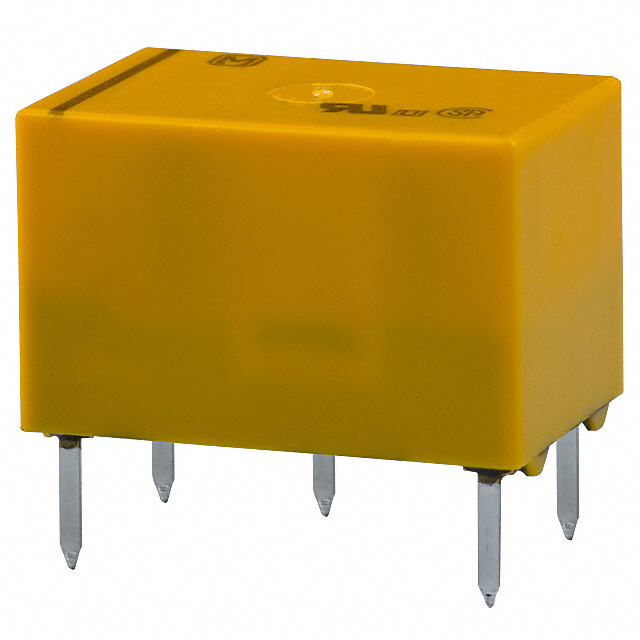

DS1E-M-DC12V
DS1E-M-DC12V
Panasonic Electric Works
Low Signal Relays - PCB 2A 12VDC SPDT NON-LATCHING
Data Sheet
0-1: $2.67
1-25: $2.40
25-50: $2.19
50-100: $2.00
DS1E-M-DC12V-R
DS1E-M-DC12V-R
Panasonic Electric Works
Low Signal Relays - PCB 1 Form C, 12VDC 1 Form C 400mW Type
Data Sheet
0-1: $3.37
1-25: $3.09
25-50: $2.76
50-100: $2.35
DS1E-M-DC12V-TB
DS1E-M-DC12V-TB
Panasonic Electric Works
Low Signal Relays - PCB 1 Form C, 12VDC 1 Form C 400mW
Data Sheet
0-1: $3.23
1-25: $2.96
25-50: $2.64
50-100: $2.24
