Product Summary

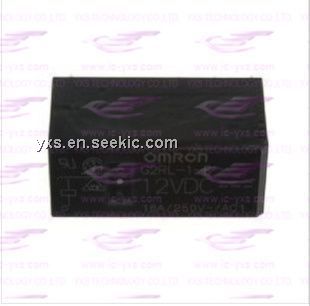

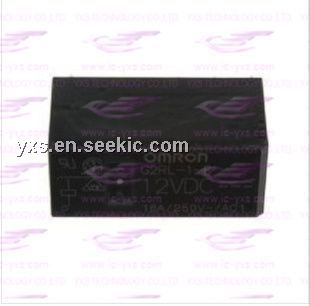

The G2RL-1-E-12V is a PCB Relay.

Parametrics

G2RL-1-E-12V absolute maximum ratings: (1)Rated voltage: 5V, 12V, 24V, 48V; (2)Rated current: 80.0mA, 33.3mA, 16.7mA, 8.96mA; (3)Coil resistance: 62.5Ω, 360Ω, 1440Ω, 5358Ω; (4)Must operate voltage: 70% max. of the rated voltage; (5)Must release voltage: 10% min. of the rated voltage; (6)Max. voltage: 180% of rated voltage (at 23℃); (7)Power consumption: Approx. 400mW Approx. 430mW.

Features

G2RL-1-E-12V features: (1)High-sensitivity (250mW) and High-capacity (16 A) versions; (2)Designed for cooking and HVAC controls: blower motor, damper, active air purification, duct flow boost fans, etc; (3)Conforms to VDE (EN61810-1). UL recognized/ CSA certiified; (4)Meets EN60335-1 requirements for household products; (5)Clearance and creepage distance: 10 mm/10 mm; (6)Tracking resistance: CTI＞250 ; (7)Coil Insulation system: Class F; (8)RoHS Compliant.

Diagrams

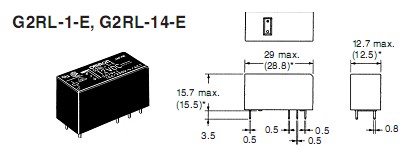

G2RL-1-E-12V pin connection
